Transmodel diagram

AM AR Access Rights and Sales Offer VIEW

In package AM AR Access Rights and Sales Offer MODELView on transmodel-cen.eu

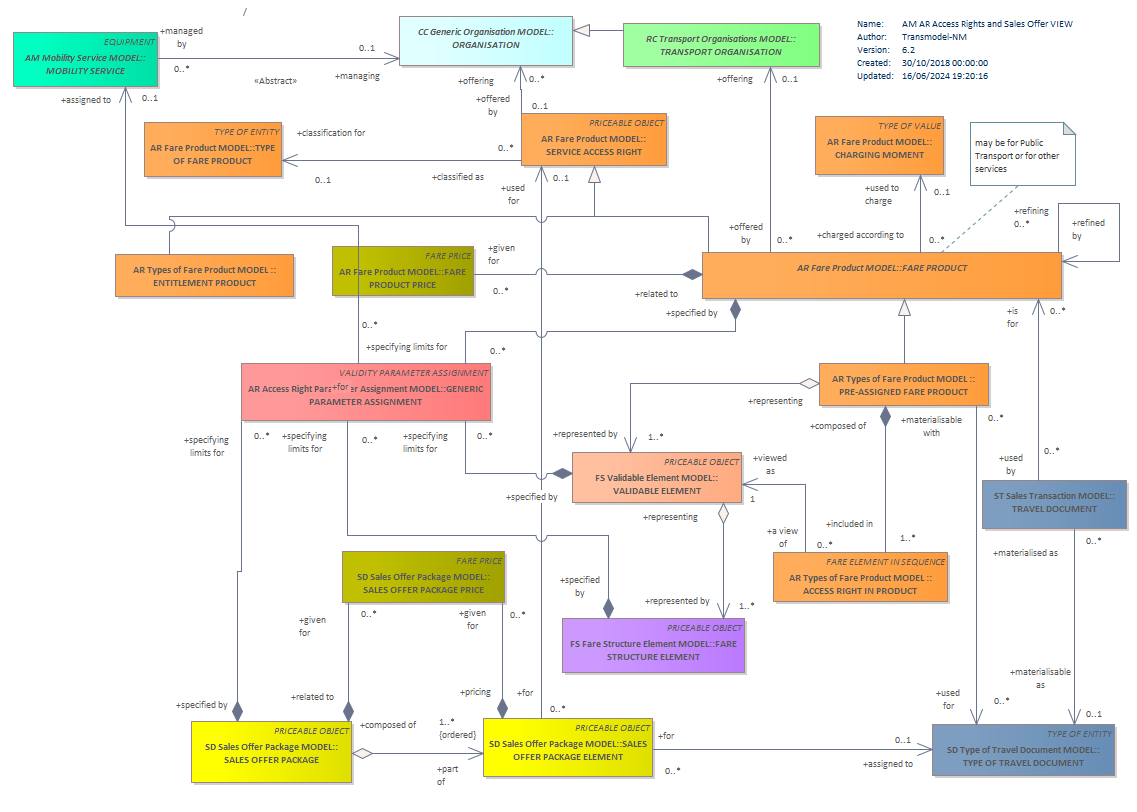

Diagram AM AR Access Rights and Sales Offer VIEW MOBILITY SERVICETRANSPORT ORGANISATIONTYPE OF TRAVEL DOCUMENTSALES OFFER PACKAGE PRICESALES OFFER PACKAGE ELEMENTTRAVEL DOCUMENTFARE STRUCTURE ELEMENTACCESS RIGHT IN PRODUCTPRE-ASSIGNED FARE PRODUCTVALIDABLE ELEMENTORGANISATIONSALES OFFER PACKAGEGENERIC PARAMETER ASSIGNMENTENTITLEMENT PRODUCTSERVICE ACCESS RIGHTFARE PRODUCT PRICETYPE OF FARE PRODUCTCHARGING MOMENTFARE PRODUCT

Classes on this diagram

ACCESS RIGHT IN PRODUCT
CHARGING MOMENT
ENTITLEMENT PRODUCT
FARE PRODUCT abstract
FARE PRODUCT PRICE
FARE STRUCTURE ELEMENT
GENERIC PARAMETER ASSIGNMENT
MOBILITY SERVICE abstract
ORGANISATION abstract
PRE-ASSIGNED FARE PRODUCT
SALES OFFER PACKAGE
SALES OFFER PACKAGE ELEMENT
SALES OFFER PACKAGE PRICE
SERVICE ACCESS RIGHT
TRANSPORT ORGANISATION abstract
TRAVEL DOCUMENT
TYPE OF FARE PRODUCT
TYPE OF TRAVEL DOCUMENT
VALIDABLE ELEMENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
