Transmodel diagram

AM EV Riding Log Entry MODEL

In package AM Riding Log Entry MODELView on transmodel-cen.eu

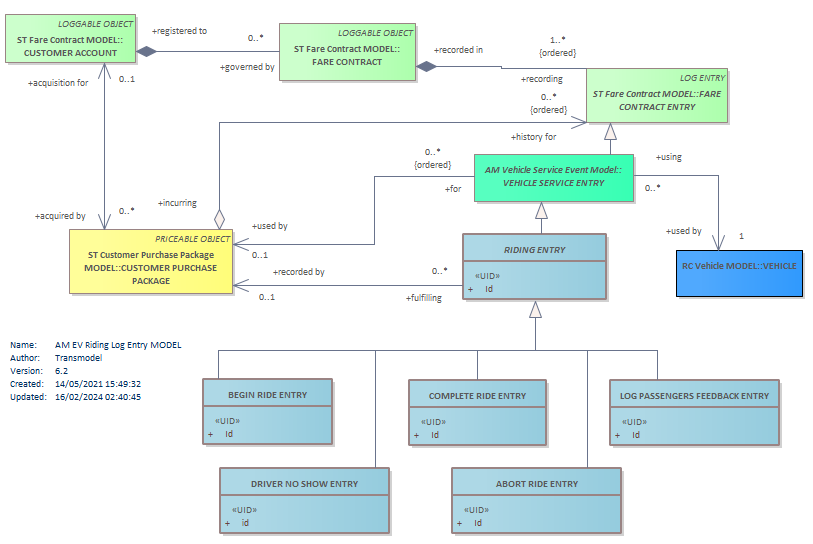

Diagram AM EV Riding Log Entry MODEL ABORT RIDE ENTRYDRIVER NO SHOW ENTRYLOG PASSENGERS FEEDBACK ENTRYCOMPLETE RIDE ENTRYBEGIN RIDE ENTRYRIDING ENTRYVEHICLEVEHICLE SERVICE ENTRYCUSTOMER ACCOUNTFARE CONTRACTFARE CONTRACT ENTRYCUSTOMER PURCHASE PACKAGE

Classes on this diagram

ABORT RIDE ENTRY
BEGIN RIDE ENTRY
COMPLETE RIDE ENTRY
CUSTOMER ACCOUNT
CUSTOMER PURCHASE PACKAGE
DRIVER NO SHOW ENTRY
FARE CONTRACT
FARE CONTRACT ENTRY abstract
LOG PASSENGERS FEEDBACK ENTRY
RIDING ENTRY abstract
VEHICLE
VEHICLE SERVICE ENTRY abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
