Transmodel diagram

AM EV Vehicle Passenger Log Entry MODEL

In package AM Vehicle Passenger Log Entry MODELView on transmodel-cen.eu

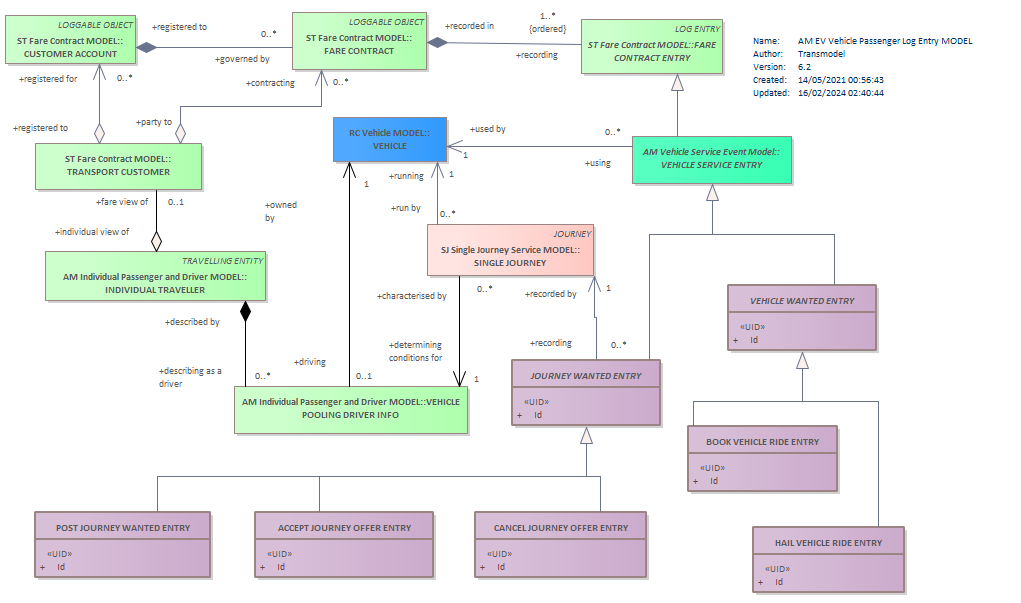

Diagram AM EV Vehicle Passenger Log Entry MODEL INDIVIDUAL TRAVELLERVEHICLE POOLING DRIVER INFOTRANSPORT CUSTOMERJOURNEY WANTED ENTRYSINGLE JOURNEYBOOK VEHICLE RIDE ENTRYVEHICLE WANTED ENTRYHAIL VEHICLE RIDE ENTRYCANCEL JOURNEY OFFER ENTRYACCEPT JOURNEY OFFER ENTRYPOST JOURNEY WANTED ENTRYVEHICLEVEHICLE SERVICE ENTRYCUSTOMER ACCOUNTFARE CONTRACTFARE CONTRACT ENTRY

Classes on this diagram

ACCEPT JOURNEY OFFER ENTRY
BOOK VEHICLE RIDE ENTRY
CANCEL JOURNEY OFFER ENTRY
CUSTOMER ACCOUNT
FARE CONTRACT
FARE CONTRACT ENTRY abstract
HAIL VEHICLE RIDE ENTRY
INDIVIDUAL TRAVELLER
JOURNEY WANTED ENTRY abstract
POST JOURNEY WANTED ENTRY
SINGLE JOURNEY
TRANSPORT CUSTOMER
VEHICLE
VEHICLE POOLING DRIVER INFO
VEHICLE SERVICE ENTRY abstract
VEHICLE WANTED ENTRY abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
