Transmodel diagram

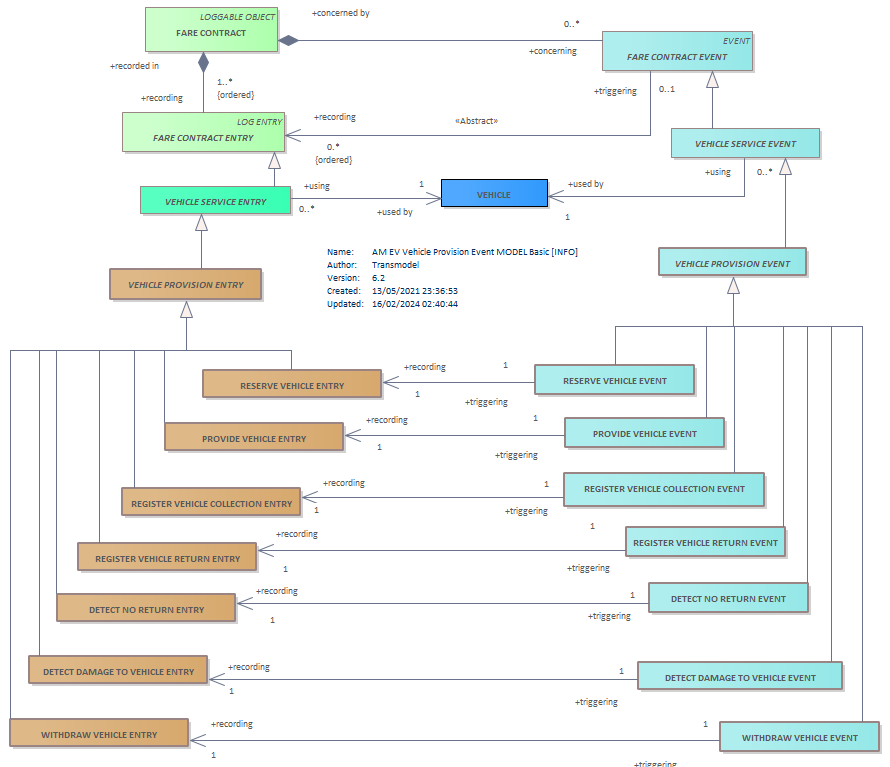

AM EV Vehicle Provision Event MODEL Basic [INFO]

In package AM Vehicle Provision Event MODELView on transmodel-cen.eu

Diagram AM EV Vehicle Provision Event MODEL Basic [INFO] PROVIDE VEHICLE ENTRYPROVIDE VEHICLE EVENTDETECT DAMAGE TO VEHICLE ENTRYDETECT DAMAGE TO VEHICLE EVENTDETECT NO RETURN ENTRYVEHICLEVEHICLE SERVICE ENTRYVEHICLE SERVICE EVENTFARE CONTRACT EVENTFARE CONTRACTFARE CONTRACT ENTRYVEHICLE PROVISION EVENTWITHDRAW VEHICLE ENTRYREGISTER VEHICLE RETURN ENTRYREGISTER VEHICLE COLLECTION ENTRYRESERVE VEHICLE ENTRYWITHDRAW VEHICLE EVENTDETECT NO RETURN EVENTREGISTER VEHICLE RETURN EVENTREGISTER VEHICLE COLLECTION EVENTRESERVE VEHICLE EVENTVEHICLE PROVISION ENTRY

Classes on this diagram

DETECT DAMAGE TO VEHICLE ENTRY
DETECT DAMAGE TO VEHICLE EVENT
DETECT NO RETURN ENTRY
DETECT NO RETURN EVENT
FARE CONTRACT
FARE CONTRACT ENTRY abstract
FARE CONTRACT EVENT abstract
PROVIDE VEHICLE ENTRY
PROVIDE VEHICLE EVENT
REGISTER VEHICLE COLLECTION ENTRY
REGISTER VEHICLE COLLECTION EVENT
REGISTER VEHICLE RETURN ENTRY
REGISTER VEHICLE RETURN EVENT
RESERVE VEHICLE ENTRY
RESERVE VEHICLE EVENT
VEHICLE
VEHICLE PROVISION ENTRY abstract
VEHICLE PROVISION EVENT abstract
VEHICLE SERVICE ENTRY abstract
VEHICLE SERVICE EVENT abstract
WITHDRAW VEHICLE ENTRY
WITHDRAW VEHICLE EVENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
