Transmodel diagram

AM EV Vehicle Provision Log Entry MODEL

In package AM Vehicle Provision Log Entry MODELView on transmodel-cen.eu

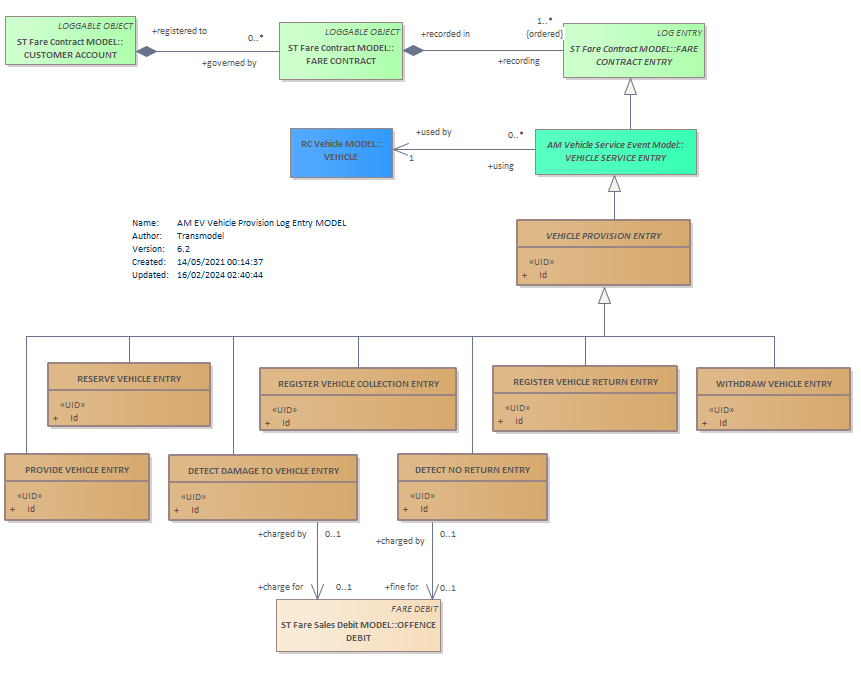

Diagram AM EV Vehicle Provision Log Entry MODEL PROVIDE VEHICLE ENTRYDETECT DAMAGE TO VEHICLE ENTRYDETECT NO RETURN ENTRYOFFENCE DEBITWITHDRAW VEHICLE ENTRYREGISTER VEHICLE RETURN ENTRYREGISTER VEHICLE COLLECTION ENTRYRESERVE VEHICLE ENTRYVEHICLE PROVISION ENTRYVEHICLEVEHICLE SERVICE ENTRYCUSTOMER ACCOUNTFARE CONTRACTFARE CONTRACT ENTRY

Classes on this diagram

CUSTOMER ACCOUNT
DETECT DAMAGE TO VEHICLE ENTRY
DETECT NO RETURN ENTRY
FARE CONTRACT
FARE CONTRACT ENTRY abstract
OFFENCE DEBIT
PROVIDE VEHICLE ENTRY
REGISTER VEHICLE COLLECTION ENTRY
REGISTER VEHICLE RETURN ENTRY
RESERVE VEHICLE ENTRY
VEHICLE
VEHICLE PROVISION ENTRY abstract
VEHICLE SERVICE ENTRY abstract
WITHDRAW VEHICLE ENTRY

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
