Transmodel diagram

AM EV Vehicle Use Event MODEL Basic [INFO]

In package AM Vehicle Use Event MODELView on transmodel-cen.eu

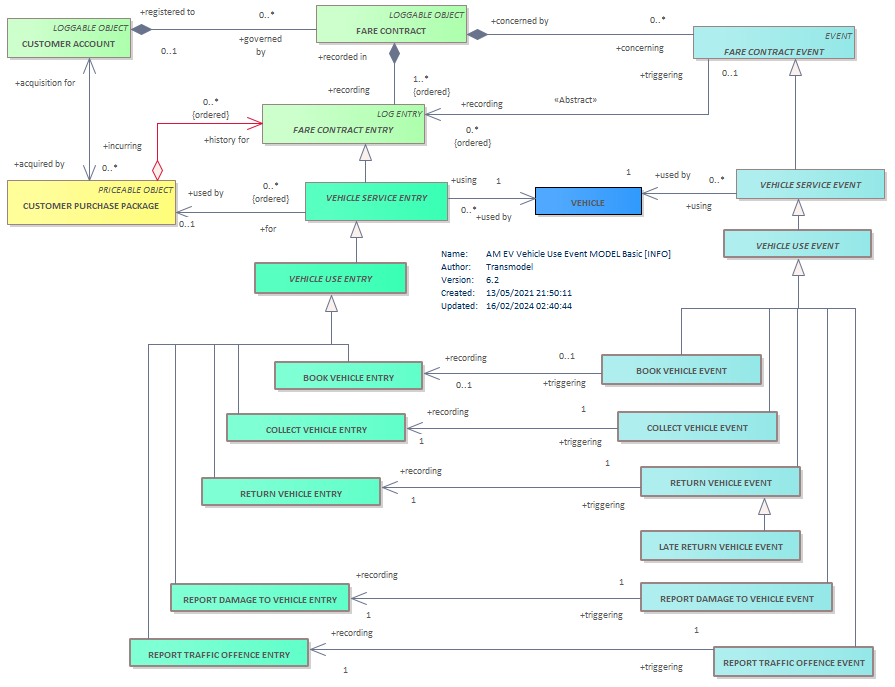

Diagram AM EV Vehicle Use Event MODEL Basic [INFO] CUSTOMER PURCHASE PACKAGEREPORT DAMAGE TO VEHICLE ENTRYREPORT DAMAGE TO VEHICLE EVENTVEHICLE USE ENTRYVEHICLEVEHICLE USE EVENTFARE CONTRACT ENTRYREPORT TRAFFIC OFFENCE ENTRYRETURN VEHICLE ENTRYCOLLECT VEHICLE ENTRYBOOK VEHICLE ENTRYVEHICLE SERVICE ENTRYREPORT TRAFFIC OFFENCE EVENTLATE RETURN VEHICLE EVENTRETURN VEHICLE EVENTCOLLECT VEHICLE EVENTBOOK VEHICLE EVENTVEHICLE SERVICE EVENTFARE CONTRACT EVENTCUSTOMER ACCOUNTFARE CONTRACT

Classes on this diagram

BOOK VEHICLE ENTRY
BOOK VEHICLE EVENT
COLLECT VEHICLE ENTRY
COLLECT VEHICLE EVENT
CUSTOMER ACCOUNT
CUSTOMER PURCHASE PACKAGE
FARE CONTRACT
FARE CONTRACT ENTRY abstract
FARE CONTRACT EVENT abstract
LATE RETURN VEHICLE EVENT
REPORT DAMAGE TO VEHICLE ENTRY
REPORT DAMAGE TO VEHICLE EVENT
REPORT TRAFFIC OFFENCE ENTRY
REPORT TRAFFIC OFFENCE EVENT
RETURN VEHICLE ENTRY
RETURN VEHICLE EVENT
VEHICLE
VEHICLE SERVICE ENTRY abstract
VEHICLE SERVICE EVENT abstract
VEHICLE USE ENTRY abstract
VEHICLE USE EVENT abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
