AM EV Vehicle Use Event Overview [INFO]

In package AM Vehicle Use Event MODELView on transmodel-cen.eu

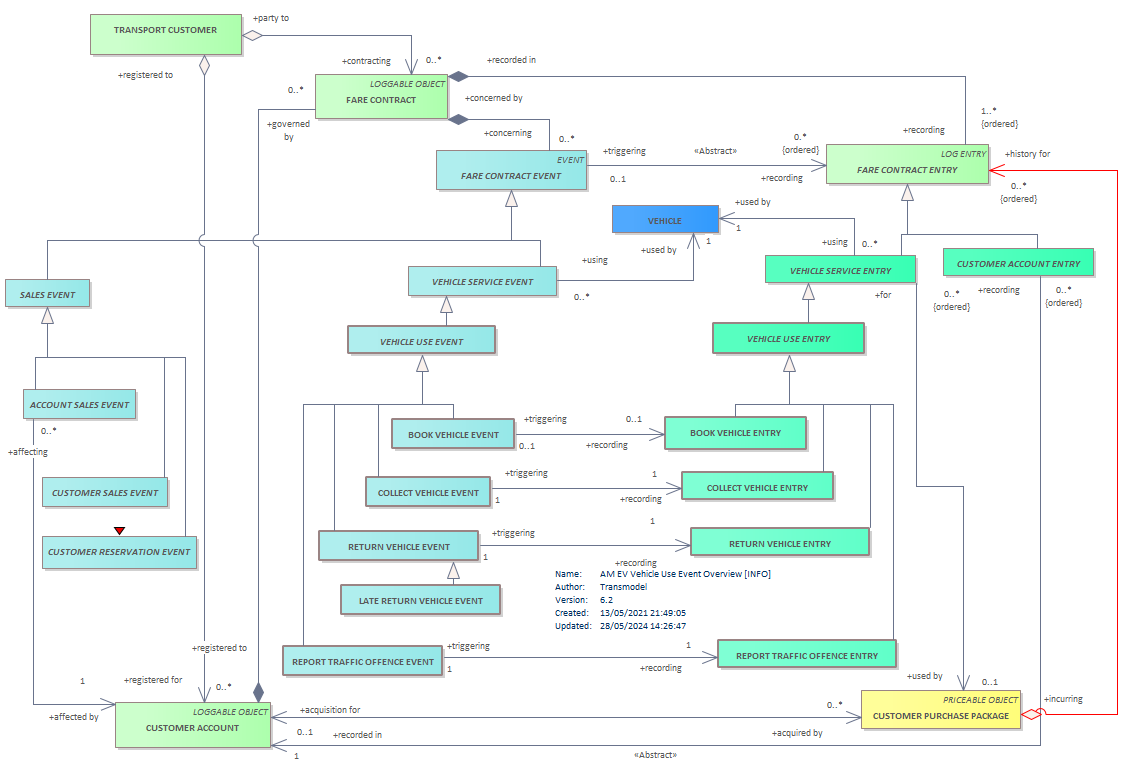

Diagram AM EV Vehicle Use Event Overview [INFO] CUSTOMER RESERVATION EVENTCUSTOMER PURCHASE PACKAGEVEHICLE USE EVENTVEHICLE USE ENTRYVEHICLEREPORT TRAFFIC OFFENCE ENTRYRETURN VEHICLE ENTRYCOLLECT VEHICLE ENTRYBOOK VEHICLE ENTRYCUSTOMER SALES EVENTREPORT TRAFFIC OFFENCE EVENTLATE RETURN VEHICLE EVENTRETURN VEHICLE EVENTCOLLECT VEHICLE EVENTBOOK VEHICLE EVENTVEHICLE SERVICE ENTRYVEHICLE SERVICE EVENTSALES EVENTACCOUNT SALES EVENTFARE CONTRACT EVENTCUSTOMER ACCOUNTCUSTOMER ACCOUNT ENTRYFARE CONTRACTTRANSPORT CUSTOMERFARE CONTRACT ENTRY

Classes on this diagram

ACCOUNT SALES EVENT abstract
BOOK VEHICLE ENTRY
BOOK VEHICLE EVENT
COLLECT VEHICLE ENTRY
COLLECT VEHICLE EVENT
CUSTOMER ACCOUNT
CUSTOMER ACCOUNT ENTRY abstract
CUSTOMER PURCHASE PACKAGE
CUSTOMER RESERVATION EVENT abstract
CUSTOMER SALES EVENT abstract
FARE CONTRACT
FARE CONTRACT ENTRY abstract
FARE CONTRACT EVENT abstract
LATE RETURN VEHICLE EVENT
REPORT TRAFFIC OFFENCE ENTRY
REPORT TRAFFIC OFFENCE EVENT
RETURN VEHICLE ENTRY
RETURN VEHICLE EVENT
SALES EVENT abstract
TRANSPORT CUSTOMER
VEHICLE
VEHICLE SERVICE ENTRY abstract
VEHICLE SERVICE EVENT abstract
VEHICLE USE ENTRY abstract
VEHICLE USE EVENT abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
