Transmodel diagram

AM FM AR Usage Parameters MODEL

In package AM Usage Parameters MODELView on transmodel-cen.eu

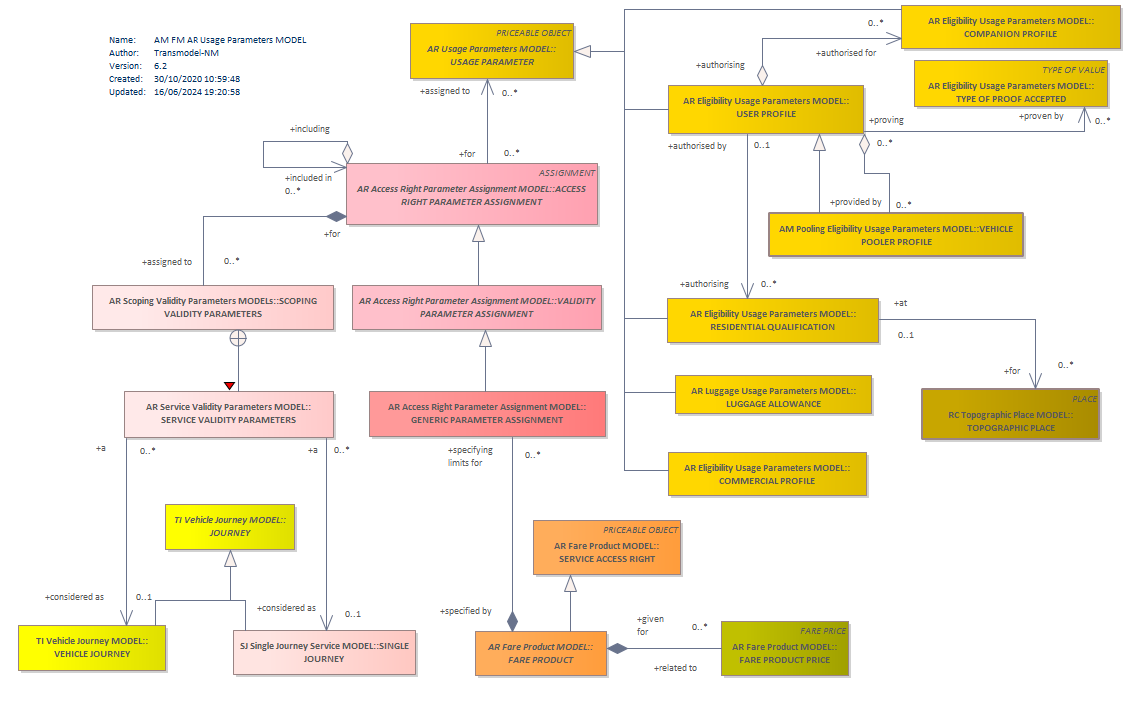

Diagram AM FM AR Usage Parameters MODEL COMPANION PROFILELUGGAGE ALLOWANCECOMMERCIAL PROFILEVEHICLE POOLER PROFILETYPE OF PROOF ACCEPTEDTOPOGRAPHIC PLACERESIDENTIAL QUALIFICATIONUSER PROFILESERVICE VALIDITY PARAMETERSSCOPING VALIDITY PARAMETERSVALIDITY PARAMETER ASSIGNMENTGENERIC PARAMETER ASSIGNMENTSERVICE ACCESS RIGHTFARE PRODUCT PRICEFARE PRODUCTJOURNEYVEHICLE JOURNEYSINGLE JOURNEYUSAGE PARAMETERACCESS RIGHT PARAMETER ASSIGNMENT

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
COMMERCIAL PROFILE
COMPANION PROFILE
FARE PRODUCT abstract
FARE PRODUCT PRICE
GENERIC PARAMETER ASSIGNMENT
JOURNEY abstract
LUGGAGE ALLOWANCE
RESIDENTIAL QUALIFICATION
SCOPING VALIDITY PARAMETERS
SERVICE ACCESS RIGHT
SERVICE VALIDITY PARAMETERS
SINGLE JOURNEY
TOPOGRAPHIC PLACE
TYPE OF PROOF ACCEPTED
USAGE PARAMETER abstract
USER PROFILE
VALIDITY PARAMETER ASSIGNMENT abstract
VEHICLE JOURNEY
VEHICLE POOLER PROFILE
