Transmodel diagram

AM FM ST Customer Purchase Package Assignment MODEL

In package AM Vehicle Service Registration MODELView on transmodel-cen.eu

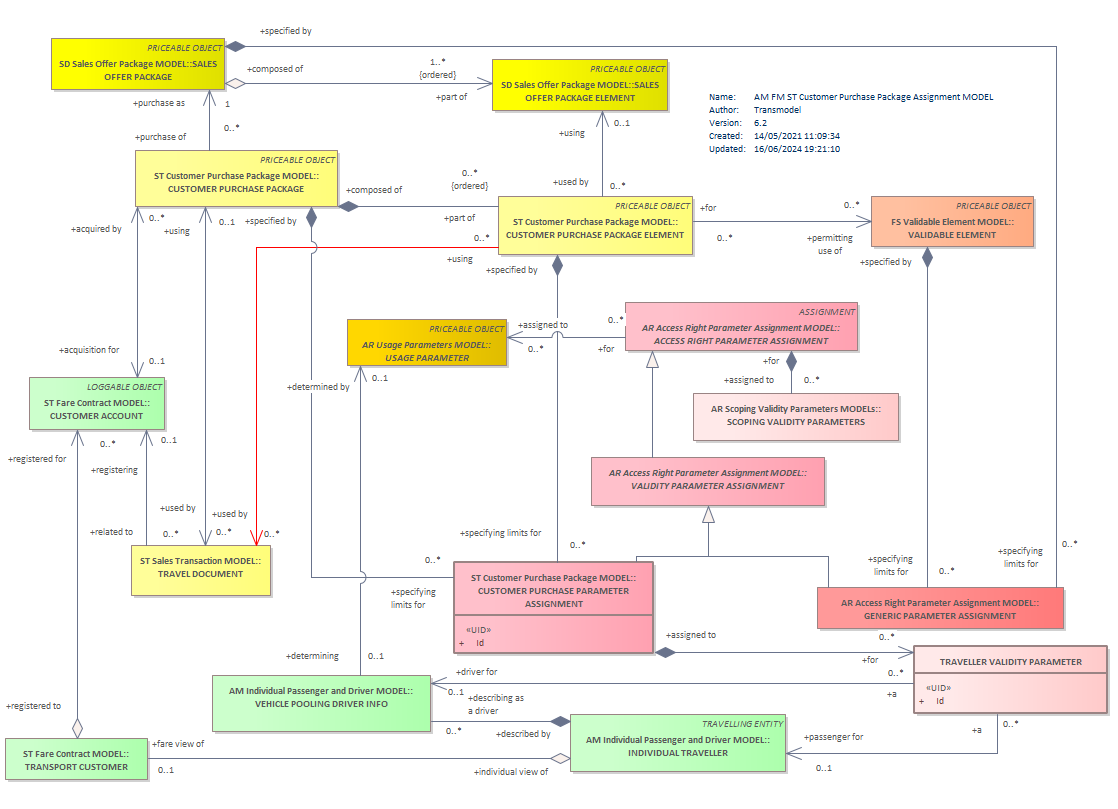

Diagram AM FM ST Customer Purchase Package Assignment MODEL TRANSPORT CUSTOMERTRAVELLER VALIDITY PARAMETERSCOPING VALIDITY PARAMETERSINDIVIDUAL TRAVELLERVEHICLE POOLING DRIVER INFOCUSTOMER ACCOUNTVALIDABLE ELEMENTCUSTOMER PURCHASE PACKAGE ELEMENTGENERIC PARAMETER ASSIGNMENTCUSTOMER PURCHASE PARAMETER ASSIGNMENTTRAVEL DOCUMENTCUSTOMER PURCHASE PACKAGEACCESS RIGHT PARAMETER ASSIGNMENTSALES OFFER PACKAGE ELEMENTSALES OFFER PACKAGEVALIDITY PARAMETER ASSIGNMENTUSAGE PARAMETER

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
CUSTOMER ACCOUNT
CUSTOMER PURCHASE PACKAGE
CUSTOMER PURCHASE PACKAGE ELEMENT
CUSTOMER PURCHASE PARAMETER ASSIGNMENT
GENERIC PARAMETER ASSIGNMENT
INDIVIDUAL TRAVELLER
SALES OFFER PACKAGE
SALES OFFER PACKAGE ELEMENT
SCOPING VALIDITY PARAMETERS
TRANSPORT CUSTOMER
TRAVEL DOCUMENT
TRAVELLER VALIDITY PARAMETER
USAGE PARAMETER abstract
VALIDABLE ELEMENT
VALIDITY PARAMETER ASSIGNMENT abstract
VEHICLE POOLING DRIVER INFO
