Transmodel diagram

AM FM ST Vehicle Access Credentials MODEL roles

In package AM Vehicle Access Credentials MODELView on transmodel-cen.eu

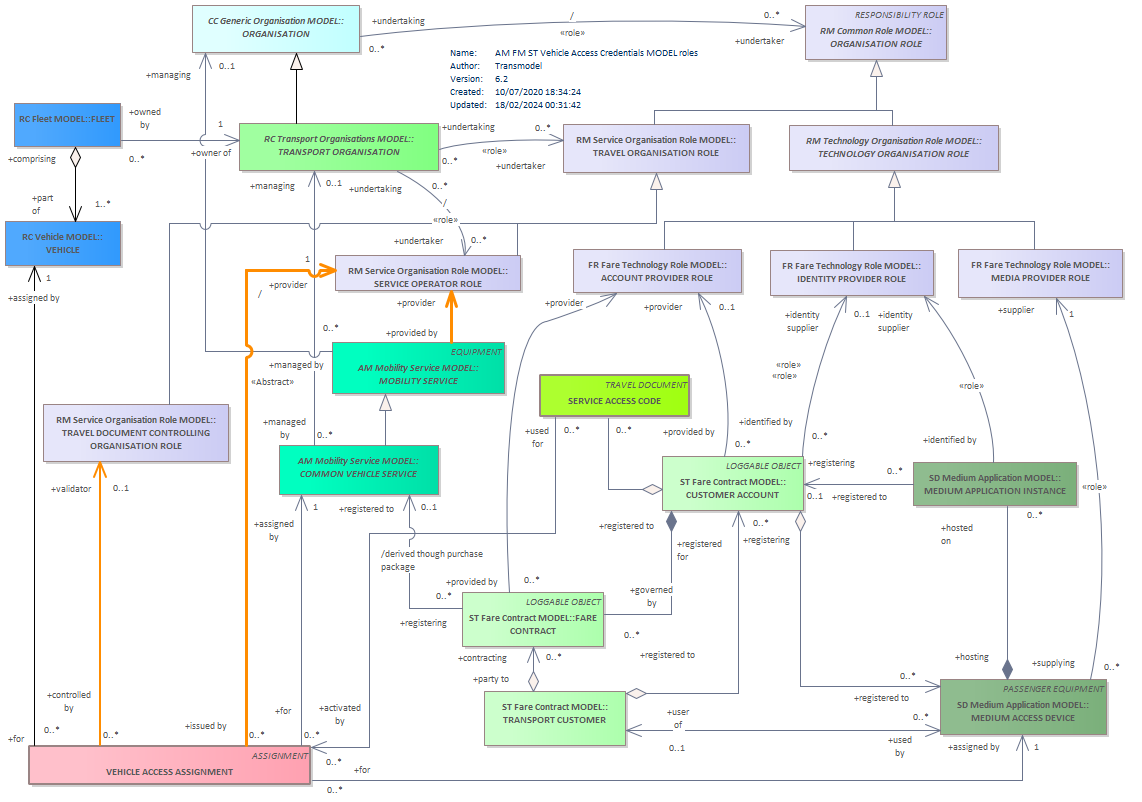

Diagram AM FM ST Vehicle Access Credentials MODEL roles TRANSPORT ORGANISATIONMOBILITY SERVICETRAVEL ORGANISATION ROLESERVICE OPERATOR ROLETRAVEL DOCUMENT CONTROLLING ORGANISATION ROLECOMMON VEHICLE SERVICESERVICE ACCESS CODEVEHICLEFLEETFARE CONTRACTTRANSPORT CUSTOMERCUSTOMER ACCOUNTMEDIUM ACCESS DEVICEMEDIUM APPLICATION INSTANCETECHNOLOGY ORGANISATION ROLEMEDIA PROVIDER ROLEACCOUNT PROVIDER ROLEIDENTITY PROVIDER ROLEORGANISATION ROLEORGANISATIONVEHICLE ACCESS ASSIGNMENT

Classes on this diagram

ACCOUNT PROVIDER ROLE
COMMON VEHICLE SERVICE abstract
CUSTOMER ACCOUNT
FARE CONTRACT
FLEET
IDENTITY PROVIDER ROLE
MEDIA PROVIDER ROLE
MEDIUM ACCESS DEVICE
MEDIUM APPLICATION INSTANCE
MOBILITY SERVICE abstract
ORGANISATION abstract
ORGANISATION ROLE abstract
SERVICE ACCESS CODE
SERVICE OPERATOR ROLE
TECHNOLOGY ORGANISATION ROLE abstract
TRANSPORT CUSTOMER
TRANSPORT ORGANISATION abstract
TRAVEL DOCUMENT CONTROLLING ORGANISATION ROLE
TRAVEL ORGANISATION ROLE
VEHICLE
VEHICLE ACCESS ASSIGNMENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
