Transmodel diagram

AM FM ST Vehicle Access Credentials MODEL

In package AM Vehicle Access Credentials MODELView on transmodel-cen.eu

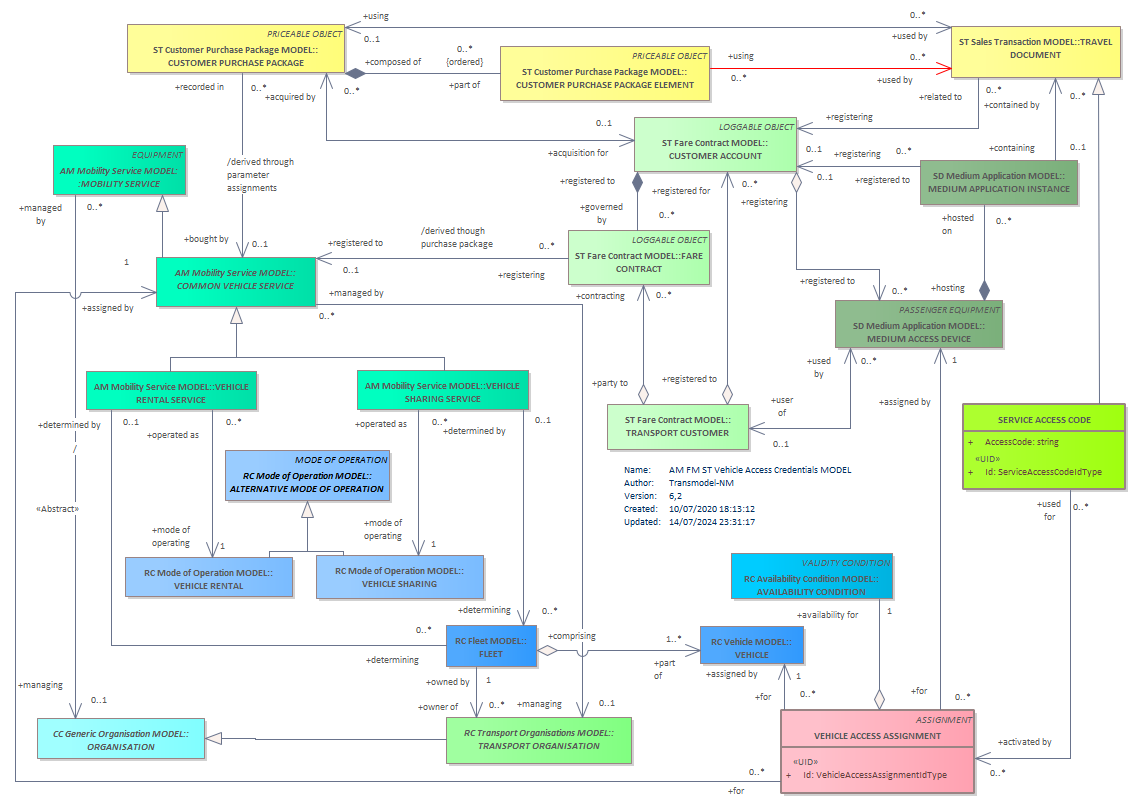

Diagram AM FM ST Vehicle Access Credentials MODEL TRANSPORT ORGANISATIONMOBILITY SERVICECUSTOMER PURCHASE PACKAGE ELEMENTTRAVEL DOCUMENTCUSTOMER PURCHASE PACKAGECOMMON VEHICLE SERVICESERVICE ACCESS CODEAVAILABILITY CONDITIONVEHICLEFLEETFARE CONTRACTTRANSPORT CUSTOMERCUSTOMER ACCOUNTMEDIUM ACCESS DEVICEMEDIUM APPLICATION INSTANCEORGANISATIONVEHICLE RENTAL SERVICEVEHICLE SHARING SERVICEALTERNATIVE MODE OF OPERATIONVEHICLE SHARINGVEHICLE RENTALVEHICLE ACCESS ASSIGNMENT

Classes on this diagram

ALTERNATIVE MODE OF OPERATION abstract
AVAILABILITY CONDITION
COMMON VEHICLE SERVICE abstract
CUSTOMER ACCOUNT
CUSTOMER PURCHASE PACKAGE
CUSTOMER PURCHASE PACKAGE ELEMENT
FARE CONTRACT
FLEET
MEDIUM ACCESS DEVICE
MEDIUM APPLICATION INSTANCE
MOBILITY SERVICE abstract
ORGANISATION abstract
SERVICE ACCESS CODE
TRANSPORT CUSTOMER
TRANSPORT ORGANISATION abstract
TRAVEL DOCUMENT
VEHICLE
VEHICLE ACCESS ASSIGNMENT
VEHICLE RENTAL
VEHICLE RENTAL SERVICE
VEHICLE SHARING
VEHICLE SHARING SERVICE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
