Transmodel diagram

AM FM ST Vehicle Service Registration MODEL

In package AM Vehicle Service Registration MODELView on transmodel-cen.eu

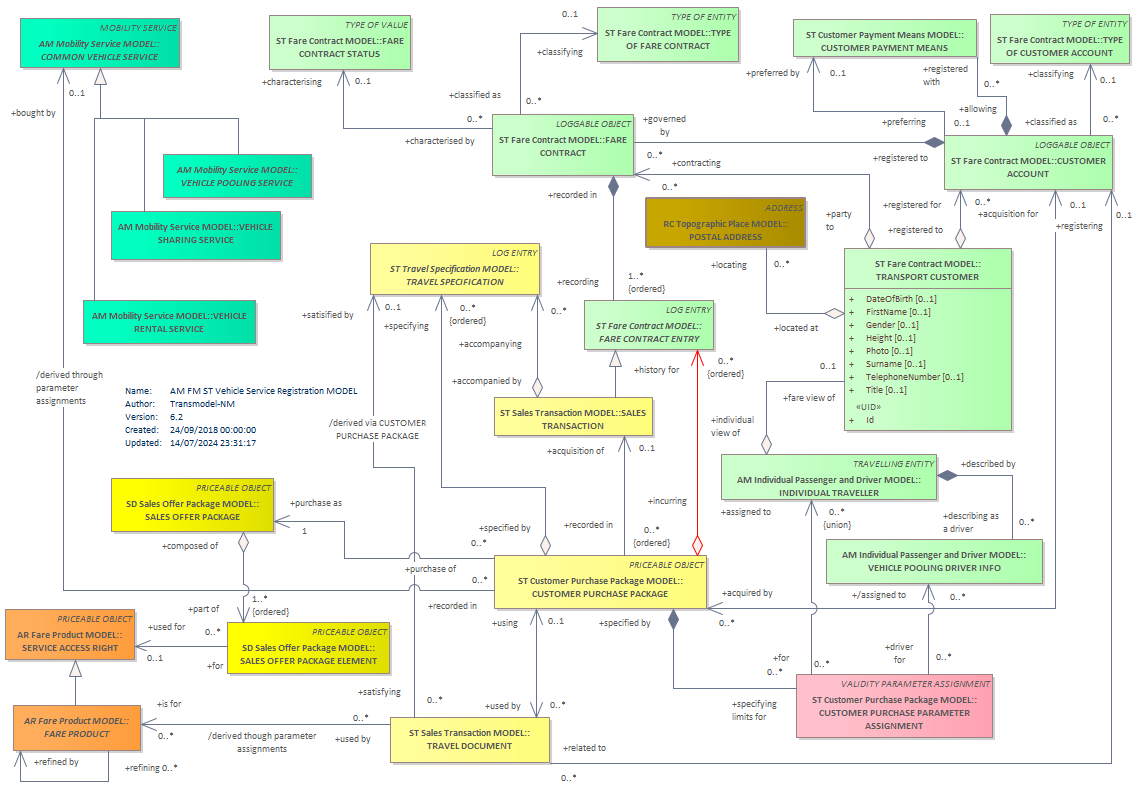

Diagram AM FM ST Vehicle Service Registration MODEL INDIVIDUAL TRAVELLERVEHICLE POOLING DRIVER INFOTRAVEL SPECIFICATIONSERVICE ACCESS RIGHTFARE PRODUCTSALES OFFER PACKAGE ELEMENTCUSTOMER PURCHASE PARAMETER ASSIGNMENTCUSTOMER PURCHASE PACKAGETRAVEL DOCUMENTSALES OFFER PACKAGESALES TRANSACTIONFARE CONTRACT ENTRYCOMMON VEHICLE SERVICECUSTOMER PAYMENT MEANSTYPE OF CUSTOMER ACCOUNTPOSTAL ADDRESSVEHICLE POOLING SERVICEFARE CONTRACT STATUSTYPE OF FARE CONTRACTFARE CONTRACTTRANSPORT CUSTOMERCUSTOMER ACCOUNTVEHICLE RENTAL SERVICEVEHICLE SHARING SERVICE

Classes on this diagram

COMMON VEHICLE SERVICE abstract
CUSTOMER ACCOUNT
CUSTOMER PAYMENT MEANS
CUSTOMER PURCHASE PACKAGE
CUSTOMER PURCHASE PARAMETER ASSIGNMENT
FARE CONTRACT
FARE CONTRACT ENTRY abstract
FARE CONTRACT STATUS
FARE PRODUCT abstract
INDIVIDUAL TRAVELLER
POSTAL ADDRESS
SALES OFFER PACKAGE
SALES OFFER PACKAGE ELEMENT
SALES TRANSACTION
SERVICE ACCESS RIGHT
TRANSPORT CUSTOMER
TRAVEL DOCUMENT
TRAVEL SPECIFICATION abstract
TYPE OF CUSTOMER ACCOUNT
TYPE OF FARE CONTRACT
VEHICLE POOLING DRIVER INFO
VEHICLE POOLING SERVICE abstract
VEHICLE RENTAL SERVICE
VEHICLE SHARING SERVICE
