Transmodel diagram

AM RM Individual Driver Role MODEL

In package AM Passenger and Individual Driver Role MODELView on transmodel-cen.eu

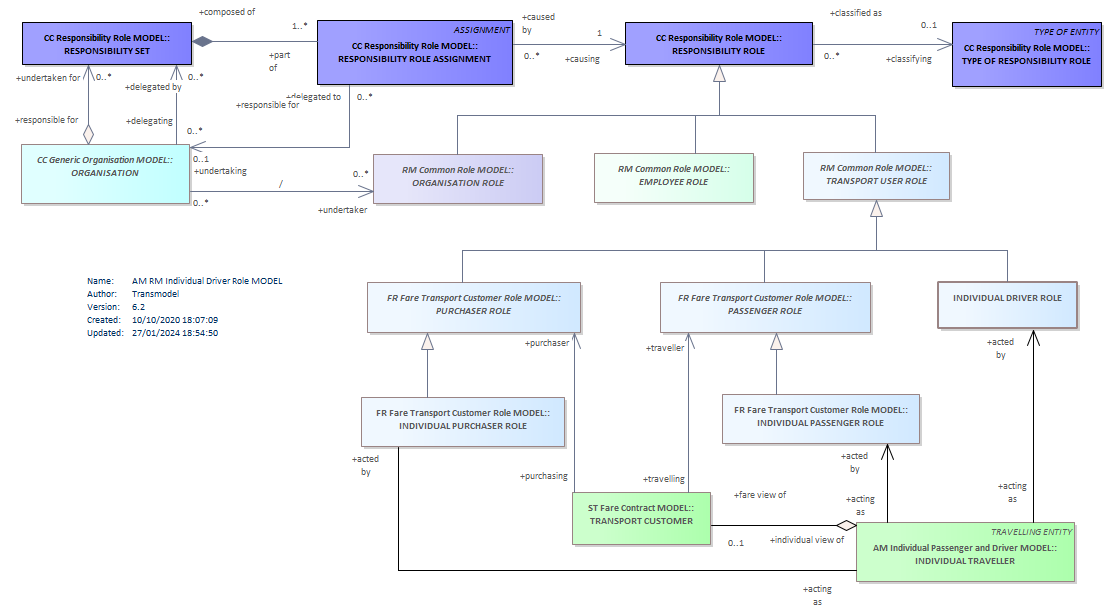

Diagram AM RM Individual Driver Role MODEL INDIVIDUAL DRIVER ROLEINDIVIDUAL TRAVELLERTRANSPORT CUSTOMERPURCHASER ROLEPASSENGER ROLEINDIVIDUAL PASSENGER ROLEINDIVIDUAL PURCHASER ROLEEMPLOYEE ROLETRANSPORT USER ROLEORGANISATION ROLETYPE OF RESPONSIBILITY ROLERESPONSIBILITY SETRESPONSIBILITY ROLERESPONSIBILITY ROLE ASSIGNMENTORGANISATION

Classes on this diagram

EMPLOYEE ROLE abstract
INDIVIDUAL DRIVER ROLE
INDIVIDUAL PASSENGER ROLE
INDIVIDUAL PURCHASER ROLE
INDIVIDUAL TRAVELLER
ORGANISATION abstract
ORGANISATION ROLE abstract
PASSENGER ROLE abstract
PURCHASER ROLE abstract
RESPONSIBILITY ROLE
RESPONSIBILITY ROLE ASSIGNMENT
RESPONSIBILITY SET
TRANSPORT CUSTOMER
TRANSPORT USER ROLE abstract
TYPE OF RESPONSIBILITY ROLE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
