Transmodel diagram

AM RM Passenger and Individual Driver Role Overview

In package AM Passenger and Individual Driver Role MODELView on transmodel-cen.eu

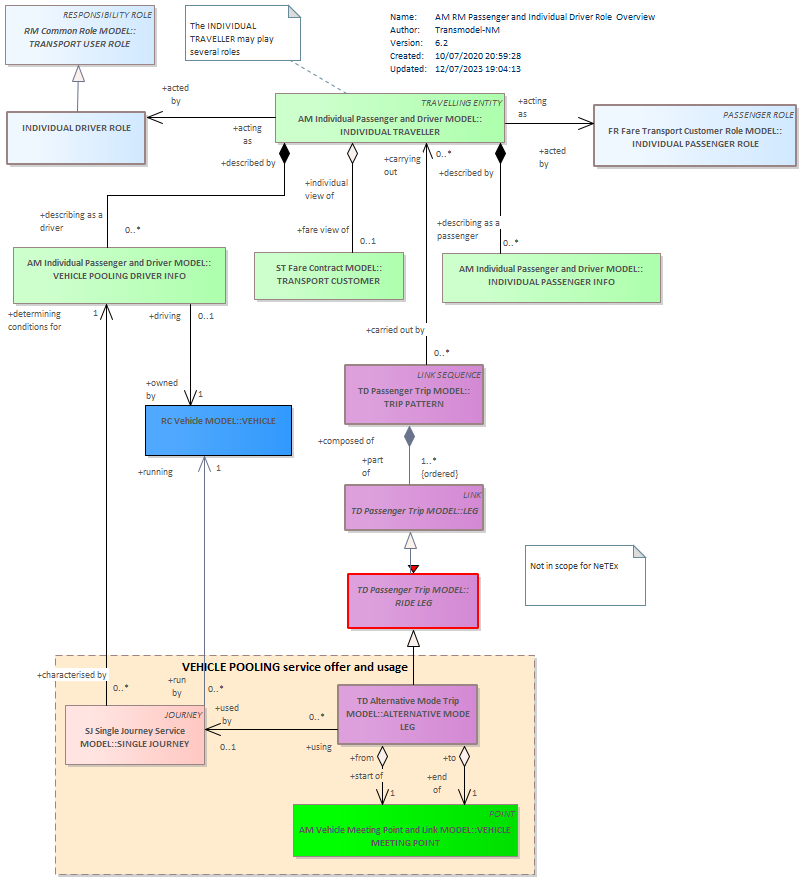

Diagram AM RM Passenger and Individual Driver Role Overview RIDE LEGTRANSPORT USER ROLEINDIVIDUAL DRIVER ROLEINDIVIDUAL PASSENGER ROLEINDIVIDUAL PASSENGER INFOINDIVIDUAL TRAVELLERVEHICLEVEHICLE POOLING DRIVER INFOSINGLE JOURNEYVEHICLE MEETING POINTALTERNATIVE MODE LEGLEGTRIP PATTERNTRANSPORT CUSTOMER

Classes on this diagram

ALTERNATIVE MODE LEG
INDIVIDUAL DRIVER ROLE
INDIVIDUAL PASSENGER INFO
INDIVIDUAL PASSENGER ROLE
INDIVIDUAL TRAVELLER
LEG abstract
RIDE LEG abstract
SINGLE JOURNEY
TRANSPORT CUSTOMER
TRANSPORT USER ROLE abstract
TRIP PATTERN
VEHICLE
VEHICLE MEETING POINT
VEHICLE POOLING DRIVER INFO
