Transmodel diagram

AM SJ Single Journey Route MODEL

In package SJ Single Journey Route MODELView on transmodel-cen.eu

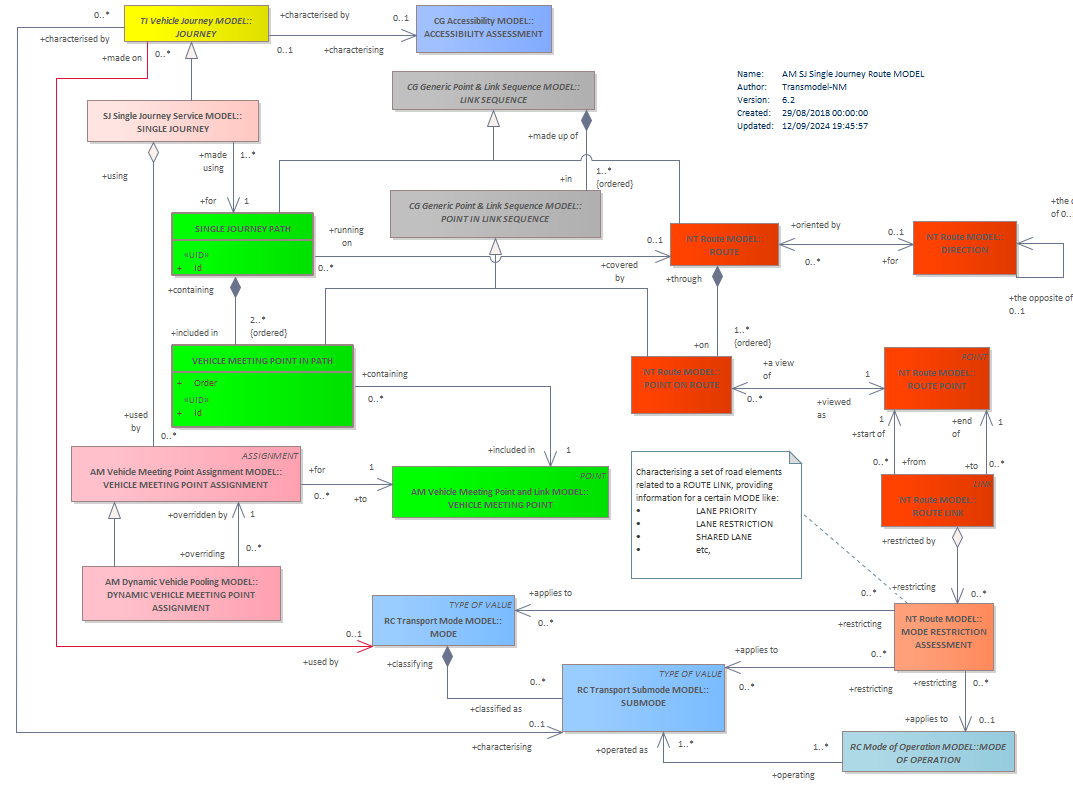

Diagram AM SJ Single Journey Route MODEL ACCESSIBILITY ASSESSMENTJOURNEYMODE OF OPERATIONDYNAMIC VEHICLE MEETING POINT ASSIGNMENTVEHICLE MEETING POINT ASSIGNMENTVEHICLE MEETING POINT IN PATHPOINT IN LINK SEQUENCELINK SEQUENCEVEHICLE MEETING POINTSUBMODEMODESINGLE JOURNEY PATHMODE RESTRICTION ASSESSMENTROUTE LINKROUTE POINTPOINT ON ROUTEDIRECTIONROUTESINGLE JOURNEY

Classes on this diagram

ACCESSIBILITY ASSESSMENT
DIRECTION
DYNAMIC VEHICLE MEETING POINT ASSIGNMENT
JOURNEY abstract
LINK SEQUENCE abstract
MODE
MODE OF OPERATION abstract
MODE RESTRICTION ASSESSMENT
POINT IN LINK SEQUENCE abstract
POINT ON ROUTE
ROUTE
ROUTE LINK
ROUTE POINT
SINGLE JOURNEY
SINGLE JOURNEY PATH
SUBMODE
VEHICLE MEETING POINT
VEHICLE MEETING POINT ASSIGNMENT
VEHICLE MEETING POINT IN PATH

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
