Transmodel diagram

AM TY Meeting Place HIERARCHY [INFO]

In package AM Meeting Place MODELView on transmodel-cen.eu

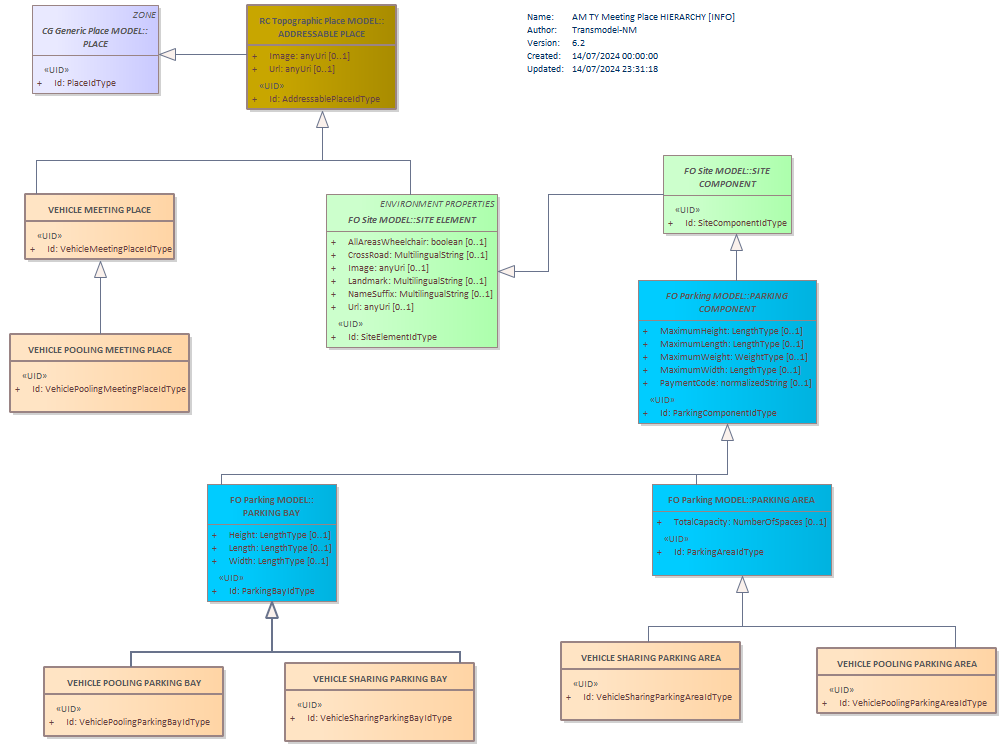

Diagram AM TY Meeting Place HIERARCHY [INFO] PLACEADDRESSABLE PLACEVEHICLE SHARING PARKING AREAVEHICLE POOLING PARKING BAYVEHICLE SHARING PARKING BAYVEHICLE POOLING MEETING PLACEVEHICLE MEETING PLACEPARKING COMPONENTPARKING BAYPARKING AREASITE ELEMENTSITE COMPONENTVEHICLE POOLING PARKING AREA

Classes on this diagram

ADDRESSABLE PLACE
PARKING AREA
PARKING BAY
PARKING COMPONENT abstract
PLACE abstract
SITE COMPONENT abstract
SITE ELEMENT abstract
VEHICLE MEETING PLACE
VEHICLE POOLING MEETING PLACE
VEHICLE POOLING PARKING AREA
VEHICLE POOLING PARKING BAY
VEHICLE SHARING PARKING AREA
VEHICLE SHARING PARKING BAY

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
