Transmodel diagram

AM TY Meeting Place MODEL

In package AM Meeting Place MODELView on transmodel-cen.eu

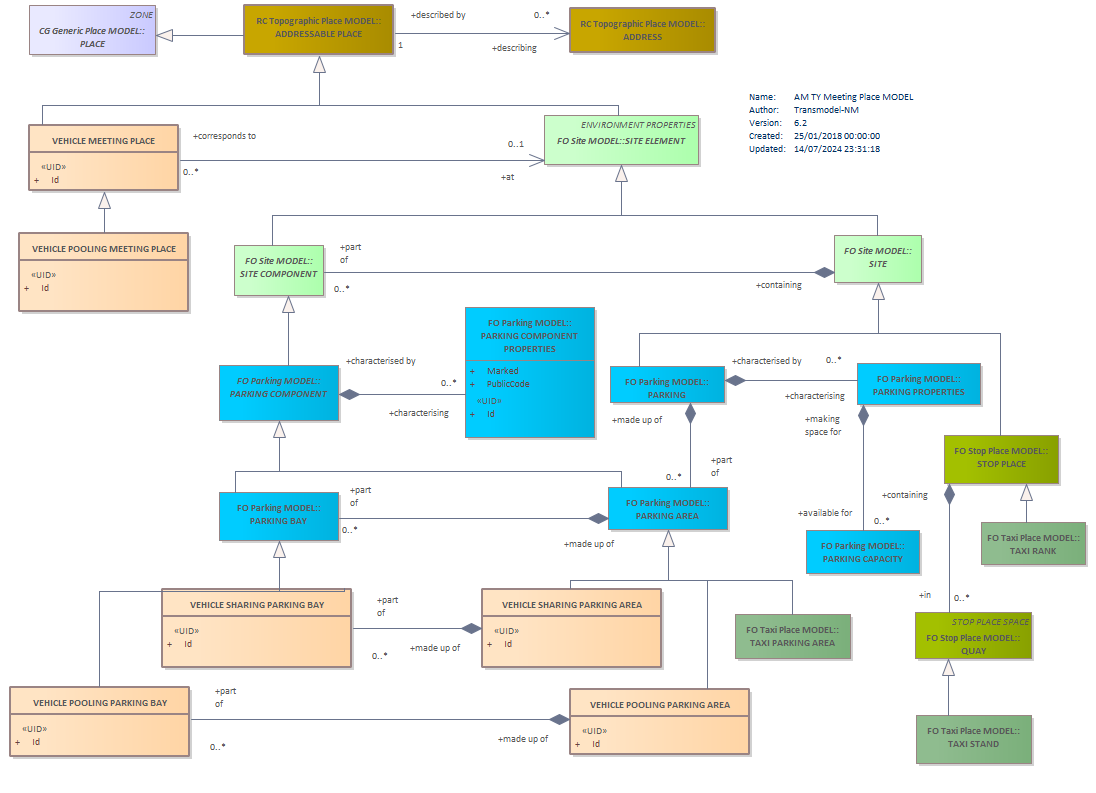

Diagram AM TY Meeting Place MODEL TAXI RANKPLACEADDRESSABLE PLACEADDRESSVEHICLE SHARING PARKING AREAPARKING COMPONENT PROPERTIESTAXI PARKING AREAVEHICLE POOLING PARKING BAYVEHICLE SHARING PARKING BAYVEHICLE POOLING MEETING PLACEVEHICLE MEETING PLACETAXI STANDSTOP PLACEQUAYPARKING COMPONENTPARKING PROPERTIESPARKING BAYPARKING CAPACITYPARKING AREAPARKINGSITE ELEMENTSITE COMPONENTSITEVEHICLE POOLING PARKING AREA

Classes on this diagram

ADDRESS
ADDRESSABLE PLACE
PARKING
PARKING AREA
PARKING BAY
PARKING CAPACITY
PARKING COMPONENT abstract
PARKING COMPONENT PROPERTIES
PARKING PROPERTIES
PLACE abstract
QUAY
SITE abstract
SITE COMPONENT abstract
SITE ELEMENT abstract
STOP PLACE
TAXI PARKING AREA
TAXI RANK
TAXI STAND
VEHICLE MEETING PLACE
VEHICLE POOLING MEETING PLACE
VEHICLE POOLING PARKING AREA
VEHICLE POOLING PARKING BAY
VEHICLE SHARING PARKING AREA
VEHICLE SHARING PARKING BAY

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
