Transmodel diagram

AM TY Vehicle Meeting Point and Link HIERARCHY [INFO]

In package AM Vehicle Meeting Point and Link MODELView on transmodel-cen.eu

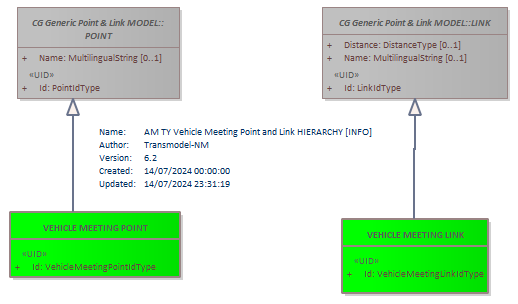

Diagram AM TY Vehicle Meeting Point and Link HIERARCHY [INFO] VEHICLE MEETING LINKVEHICLE MEETING POINTPOINTLINK

Classes on this diagram

LINK abstract
POINT abstract
VEHICLE MEETING LINK
VEHICLE MEETING POINT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
