Transmodel diagram

AM TY Vehicle Meeting Point and Link MODEL

In package AM Vehicle Meeting Point and Link MODELView on transmodel-cen.eu

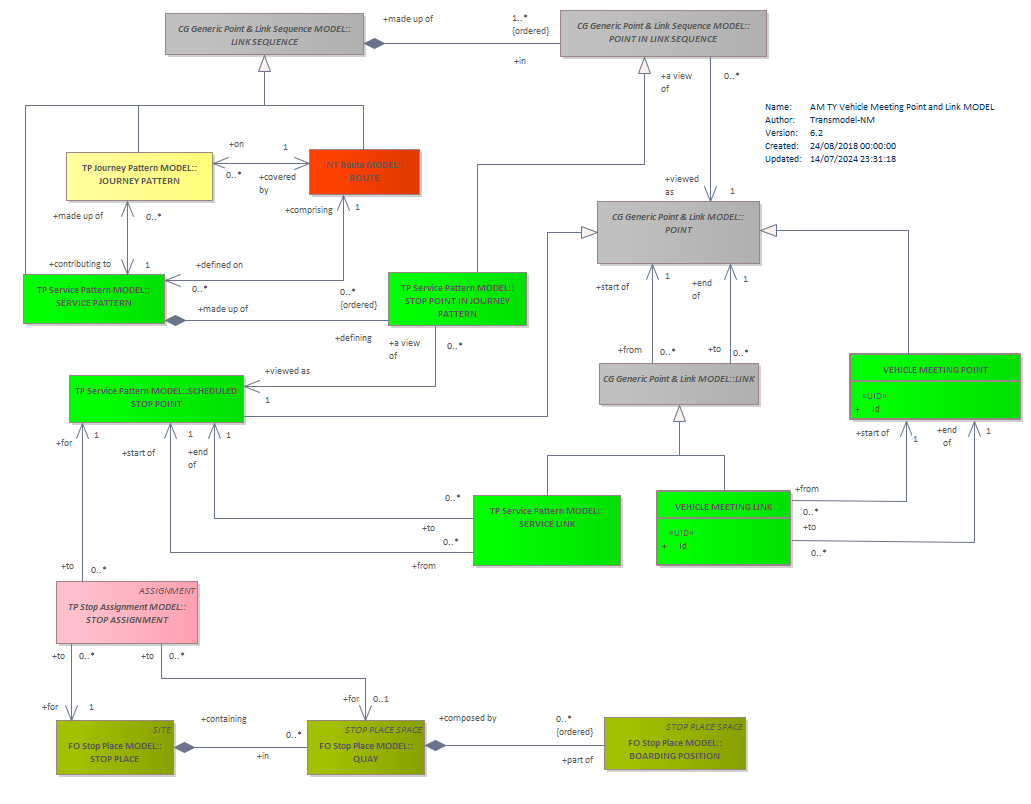

Diagram AM TY Vehicle Meeting Point and Link MODEL VEHICLE MEETING LINKVEHICLE MEETING POINTPOINT IN LINK SEQUENCEPOINTLINK SEQUENCELINKBOARDING POSITIONQUAYSTOP PLACESTOP ASSIGNMENTROUTESTOP POINT IN JOURNEY PATTERNJOURNEY PATTERNSERVICE PATTERNSERVICE LINKSCHEDULED STOP POINT

Classes on this diagram

BOARDING POSITION
JOURNEY PATTERN
LINK abstract
LINK SEQUENCE abstract
POINT abstract
POINT IN LINK SEQUENCE abstract
QUAY
ROUTE
SCHEDULED STOP POINT
SERVICE LINK
SERVICE PATTERN
STOP ASSIGNMENT abstract
STOP PLACE
STOP POINT IN JOURNEY PATTERN
VEHICLE MEETING LINK
VEHICLE MEETING POINT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
