Transmodel diagram

AM Vehicle Availability Information MODEL

In package AM Vehicle Availability Information MODELView on transmodel-cen.eu

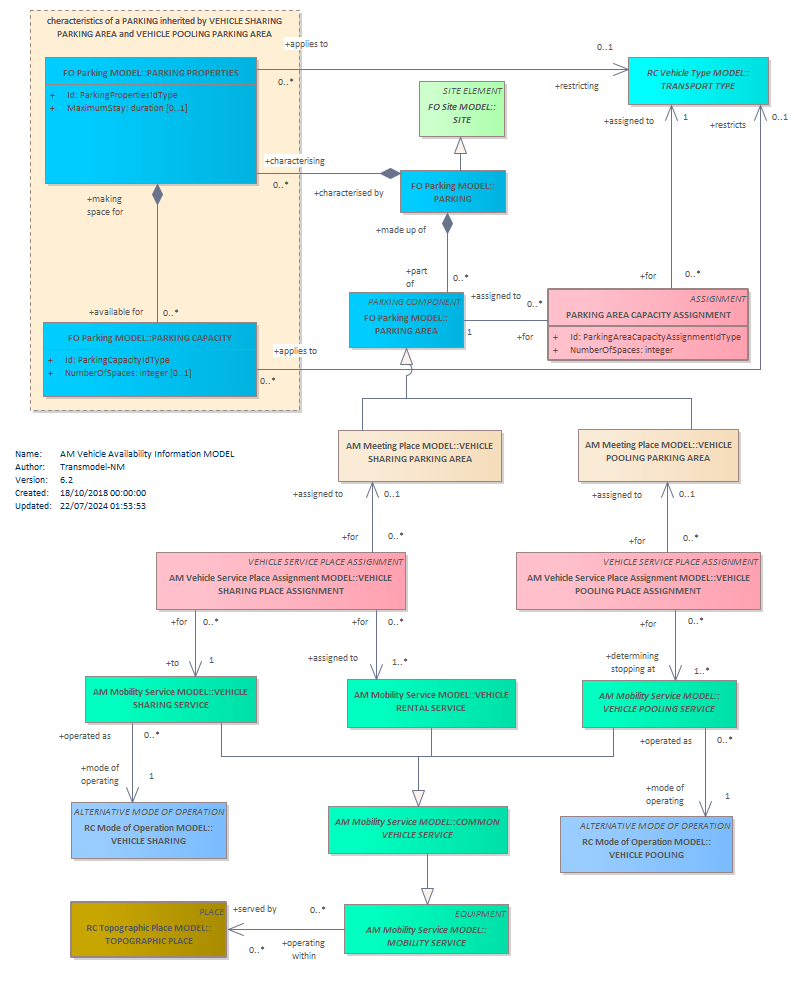

Diagram AM Vehicle Availability Information MODEL MOBILITY SERVICECOMMON VEHICLE SERVICEVEHICLE SHARING PARKING AREATRANSPORT TYPEPARKING AREA CAPACITY ASSIGNMENTPARKING PROPERTIESPARKING CAPACITYVEHICLE RENTAL SERVICEVEHICLE SHARINGVEHICLE SHARING PLACE ASSIGNMENTVEHICLE SHARING SERVICETOPOGRAPHIC PLACEVEHICLE POOLINGVEHICLE POOLING PLACE ASSIGNMENTVEHICLE POOLING SERVICEPARKING AREAPARKINGSITEVEHICLE POOLING PARKING AREA

Classes on this diagram

COMMON VEHICLE SERVICE abstract
MOBILITY SERVICE abstract
PARKING
PARKING AREA
PARKING AREA CAPACITY ASSIGNMENT
PARKING CAPACITY
PARKING PROPERTIES
SITE abstract
TOPOGRAPHIC PLACE
TRANSPORT TYPE abstract
VEHICLE POOLING
VEHICLE POOLING PARKING AREA
VEHICLE POOLING PLACE ASSIGNMENT
VEHICLE POOLING SERVICE abstract
VEHICLE RENTAL SERVICE
VEHICLE SHARING
VEHICLE SHARING PARKING AREA
VEHICLE SHARING PLACE ASSIGNMENT
VEHICLE SHARING SERVICE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
