Transmodel diagram

AMParking ARea Capacity Assignment HIERARCHY [INFO]

In package AM Vehicle Availability Information MODELView on transmodel-cen.eu

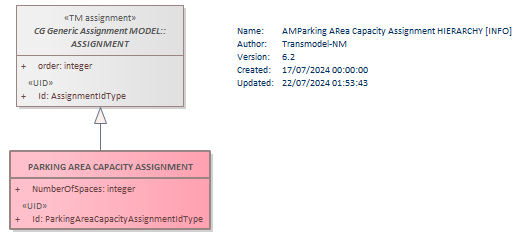

Diagram AMParking ARea Capacity Assignment HIERARCHY [INFO] ASSIGNMENTPARKING AREA CAPACITY ASSIGNMENT

Classes on this diagram

ASSIGNMENT abstract
PARKING AREA CAPACITY ASSIGNMENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
