Transmodel diagram

DM DS Duty HIERARCHY [INFO]

In package DM Duty MODELView on transmodel-cen.eu

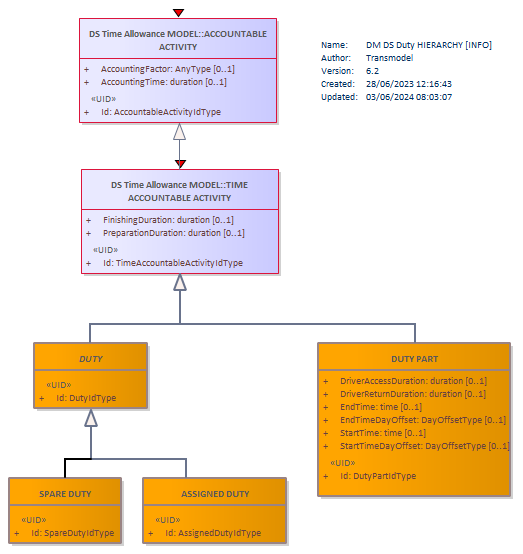

Diagram DM DS Duty HIERARCHY [INFO] TIME ACCOUNTABLE ACTIVITYACCOUNTABLE ACTIVITYASSIGNED DUTYDUTY PARTDUTYSPARE DUTY

Classes on this diagram

ACCOUNTABLE ACTIVITY
ASSIGNED DUTY
DUTY abstract
DUTY PART
SPARE DUTY
TIME ACCOUNTABLE ACTIVITY

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
