Transmodel diagram

FM AR Access Right Parameter Assignment HIERARCHY [INFO]

In package AR Access Right Parameter Assignment MODELView on transmodel-cen.eu

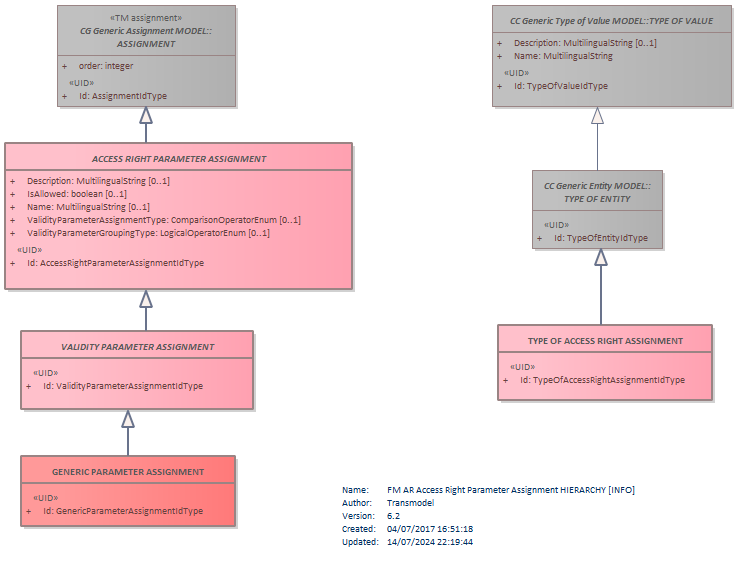

Diagram FM AR Access Right Parameter Assignment HIERARCHY [INFO] ASSIGNMENTTYPE OF ENTITYTYPE OF VALUETYPE OF ACCESS RIGHT ASSIGNMENTVALIDITY PARAMETER ASSIGNMENTGENERIC PARAMETER ASSIGNMENTACCESS RIGHT PARAMETER ASSIGNMENT

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
ASSIGNMENT abstract
GENERIC PARAMETER ASSIGNMENT
TYPE OF ACCESS RIGHT ASSIGNMENT
TYPE OF ENTITY abstract
TYPE OF VALUE abstract
VALIDITY PARAMETER ASSIGNMENT abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
