Transmodel diagram

FM AR Access Right Validity Parameters MODEL chain [INFO]

In package AR Access Right Parameter Assignment MODELView on transmodel-cen.eu

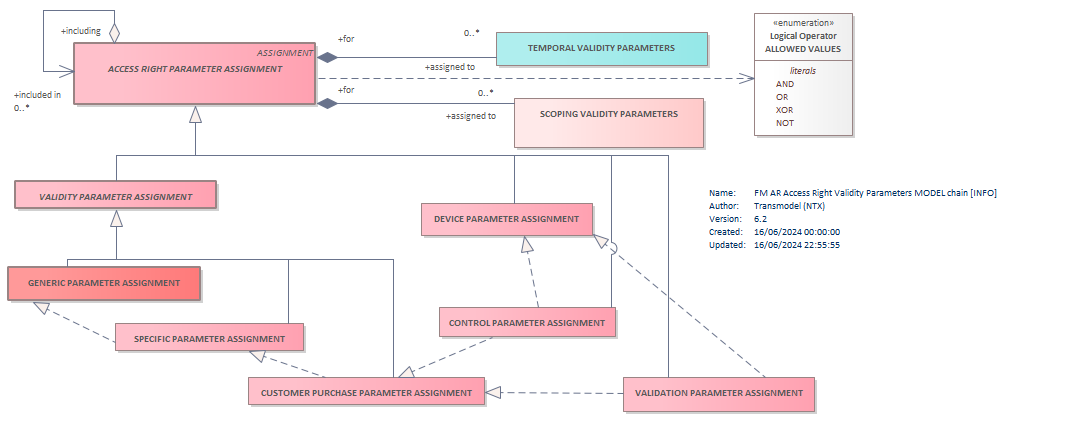

Diagram FM AR Access Right Validity Parameters MODEL chain [INFO] VALIDATION PARAMETER ASSIGNMENTDEVICE PARAMETER ASSIGNMENTCONTROL PARAMETER ASSIGNMENTLogical Operator ALLOWED VALUESCUSTOMER PURCHASE PARAMETER ASSIGNMENTSPECIFIC PARAMETER ASSIGNMENTVALIDITY PARAMETER ASSIGNMENTGENERIC PARAMETER ASSIGNMENTSCOPING VALIDITY PARAMETERSTEMPORAL VALIDITY PARAMETERSACCESS RIGHT PARAMETER ASSIGNMENT

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
CONTROL PARAMETER ASSIGNMENT
CUSTOMER PURCHASE PARAMETER ASSIGNMENT
DEVICE PARAMETER ASSIGNMENT
GENERIC PARAMETER ASSIGNMENT
Logical Operator ALLOWED VALUES
SCOPING VALIDITY PARAMETERS
SPECIFIC PARAMETER ASSIGNMENT
TEMPORAL VALIDITY PARAMETERS
VALIDATION PARAMETER ASSIGNMENT
VALIDITY PARAMETER ASSIGNMENT abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
