Transmodel diagram

FM AR Access Right Validity Parameters MODEL overview [INFO]

In package AR Access Right Parameter Assignment MODELView on transmodel-cen.eu

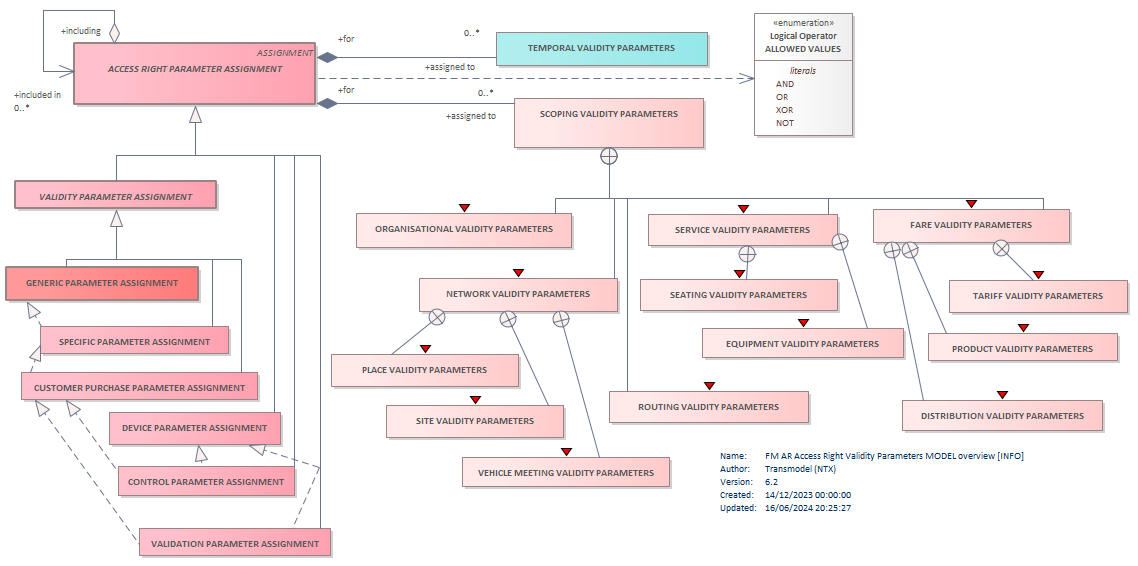

Diagram FM AR Access Right Validity Parameters MODEL overview [INFO] VALIDATION PARAMETER ASSIGNMENTDEVICE PARAMETER ASSIGNMENTCONTROL PARAMETER ASSIGNMENTLogical Operator ALLOWED VALUESCUSTOMER PURCHASE PARAMETER ASSIGNMENTSPECIFIC PARAMETER ASSIGNMENTVALIDITY PARAMETER ASSIGNMENTGENERIC PARAMETER ASSIGNMENTEQUIPMENT VALIDITY PARAMETERSVEHICLE MEETING VALIDITY PARAMETERSPLACE VALIDITY PARAMETERSSEATING VALIDITY PARAMETERSTARIFF VALIDITY PARAMETERSPRODUCT VALIDITY PARAMETERSDISTRIBUTION VALIDITY PARAMETERSSITE VALIDITY PARAMETERSFARE VALIDITY PARAMETERSORGANISATIONAL VALIDITY PARAMETERSSERVICE VALIDITY PARAMETERSROUTING VALIDITY PARAMETERSNETWORK VALIDITY PARAMETERSSCOPING VALIDITY PARAMETERSTEMPORAL VALIDITY PARAMETERSACCESS RIGHT PARAMETER ASSIGNMENT

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
CONTROL PARAMETER ASSIGNMENT
CUSTOMER PURCHASE PARAMETER ASSIGNMENT
DEVICE PARAMETER ASSIGNMENT
DISTRIBUTION VALIDITY PARAMETERS
EQUIPMENT VALIDITY PARAMETERS
FARE VALIDITY PARAMETERS
GENERIC PARAMETER ASSIGNMENT
Logical Operator ALLOWED VALUES
NETWORK VALIDITY PARAMETERS
ORGANISATIONAL VALIDITY PARAMETERS
PLACE VALIDITY PARAMETERS
PRODUCT VALIDITY PARAMETERS
ROUTING VALIDITY PARAMETERS
SCOPING VALIDITY PARAMETERS
SEATING VALIDITY PARAMETERS
SERVICE VALIDITY PARAMETERS
SITE VALIDITY PARAMETERS
SPECIFIC PARAMETER ASSIGNMENT
TARIFF VALIDITY PARAMETERS
TEMPORAL VALIDITY PARAMETERS
VALIDATION PARAMETER ASSIGNMENT
VALIDITY PARAMETER ASSIGNMENT abstract
VEHICLE MEETING VALIDITY PARAMETERS

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
