Transmodel diagram

FM AR Charging Usage Parameters HIERARCHY [INFO]

In package AR Charging Usage Parameters MODELView on transmodel-cen.eu

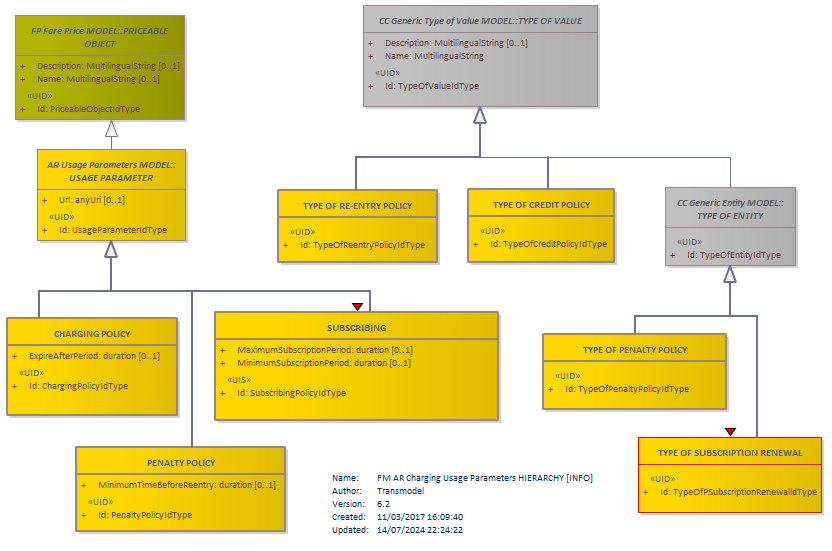

Diagram FM AR Charging Usage Parameters HIERARCHY [INFO] TYPE OF SUBSCRIPTION RENEWALTYPE OF ENTITYSUBSCRIBINGTYPE OF CREDIT POLICYTYPE OF RE-ENTRY POLICYTYPE OF PENALTY POLICYPENALTY POLICYCHARGING POLICYTYPE OF VALUEPRICEABLE OBJECTUSAGE PARAMETER

Classes on this diagram

CHARGING POLICY
PENALTY POLICY
PRICEABLE OBJECT abstract
SUBSCRIBING
TYPE OF CREDIT POLICY
TYPE OF ENTITY abstract
TYPE OF PENALTY POLICY
TYPE OF RE-ENTRY POLICY
TYPE OF SUBSCRIPTION RENEWAL
TYPE OF VALUE abstract
USAGE PARAMETER abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
