FM AR Entitlement Usage Parameters HIERARCHY [INFO]

In package AR Entitlement Parameters MODELView on transmodel-cen.eu

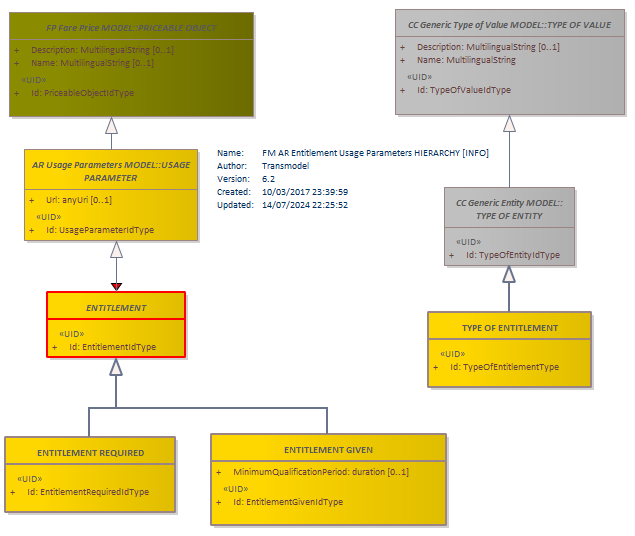

Diagram FM AR Entitlement Usage Parameters HIERARCHY [INFO] ENTITLEMENTTYPE OF ENTITYTYPE OF ENTITLEMENTENTITLEMENT GIVENENTITLEMENT REQUIREDTYPE OF VALUEPRICEABLE OBJECTUSAGE PARAMETER

Classes on this diagram

ENTITLEMENT abstract
ENTITLEMENT GIVEN
ENTITLEMENT REQUIRED
PRICEABLE OBJECT abstract
TYPE OF ENTITLEMENT
TYPE OF ENTITY abstract
TYPE OF VALUE abstract
USAGE PARAMETER abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
