Transmodel diagram

FM AR Fare Easement MODEL

In package AR Fare Easement MODELView on transmodel-cen.eu

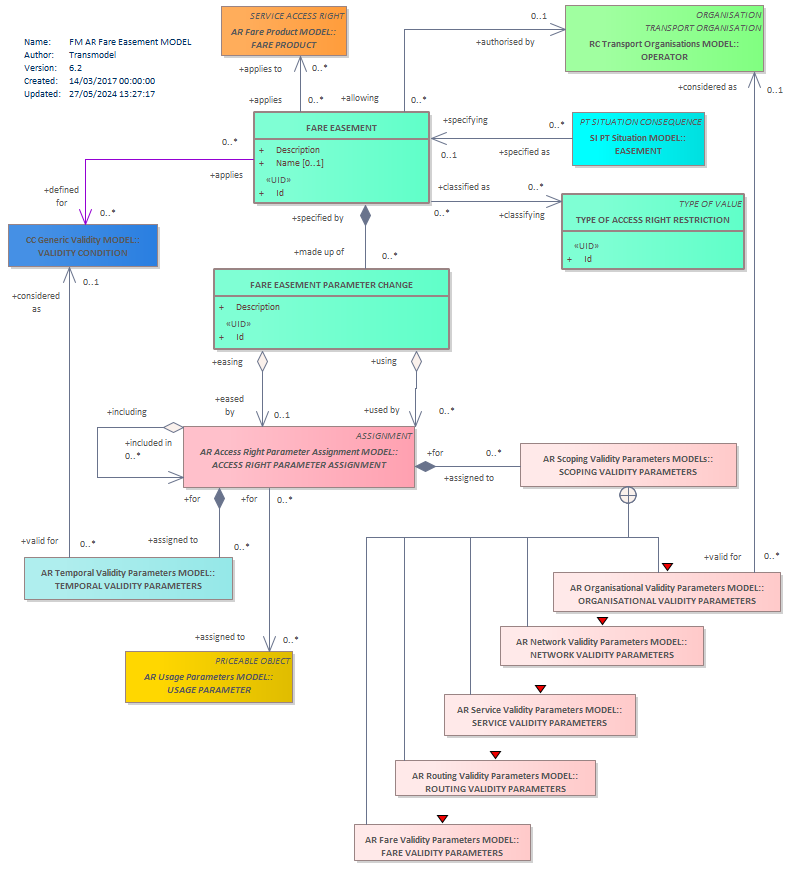

Diagram FM AR Fare Easement MODEL FARE EASEMENT PARAMETER CHANGETYPE OF ACCESS RIGHT RESTRICTIONFARE PRODUCTOPERATORVALIDITY CONDITIONUSAGE PARAMETERFARE VALIDITY PARAMETERSORGANISATIONAL VALIDITY PARAMETERSSERVICE VALIDITY PARAMETERSROUTING VALIDITY PARAMETERSNETWORK VALIDITY PARAMETERSSCOPING VALIDITY PARAMETERSTEMPORAL VALIDITY PARAMETERSACCESS RIGHT PARAMETER ASSIGNMENTFARE EASEMENTEASEMENT

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
EASEMENT
FARE EASEMENT
FARE EASEMENT PARAMETER CHANGE
FARE PRODUCT abstract
FARE VALIDITY PARAMETERS
NETWORK VALIDITY PARAMETERS
OPERATOR
ORGANISATIONAL VALIDITY PARAMETERS
ROUTING VALIDITY PARAMETERS
SCOPING VALIDITY PARAMETERS
SERVICE VALIDITY PARAMETERS
TEMPORAL VALIDITY PARAMETERS
TYPE OF ACCESS RIGHT RESTRICTION
USAGE PARAMETER abstract
VALIDITY CONDITION

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
