Transmodel diagram

FM AR Luggage Usage Parameters MODEL

In package AR Luggage Usage Parameters MODELView on transmodel-cen.eu

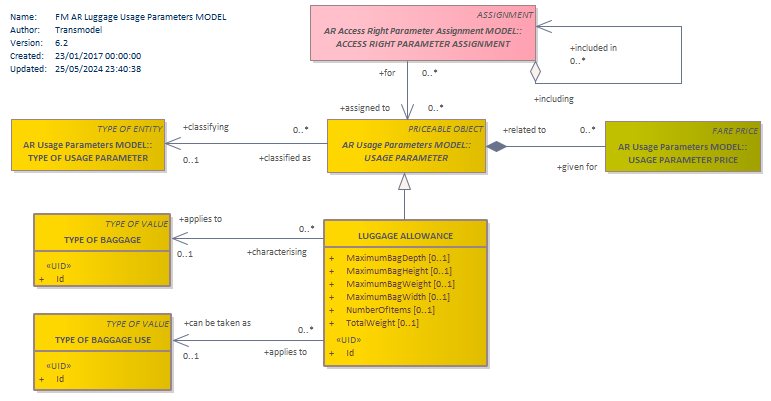

Diagram FM AR Luggage Usage Parameters MODEL TYPE OF BAGGAGE USETYPE OF BAGGAGETYPE OF USAGE PARAMETERUSAGE PARAMETER PRICEUSAGE PARAMETERACCESS RIGHT PARAMETER ASSIGNMENTLUGGAGE ALLOWANCE

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
LUGGAGE ALLOWANCE
TYPE OF BAGGAGE
TYPE OF BAGGAGE USE
TYPE OF USAGE PARAMETER
USAGE PARAMETER abstract
USAGE PARAMETER PRICE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
