Transmodel diagram

FM AR Network Validity Parameters MODEL

In package AR Network Validity Parameters MODELView on transmodel-cen.eu

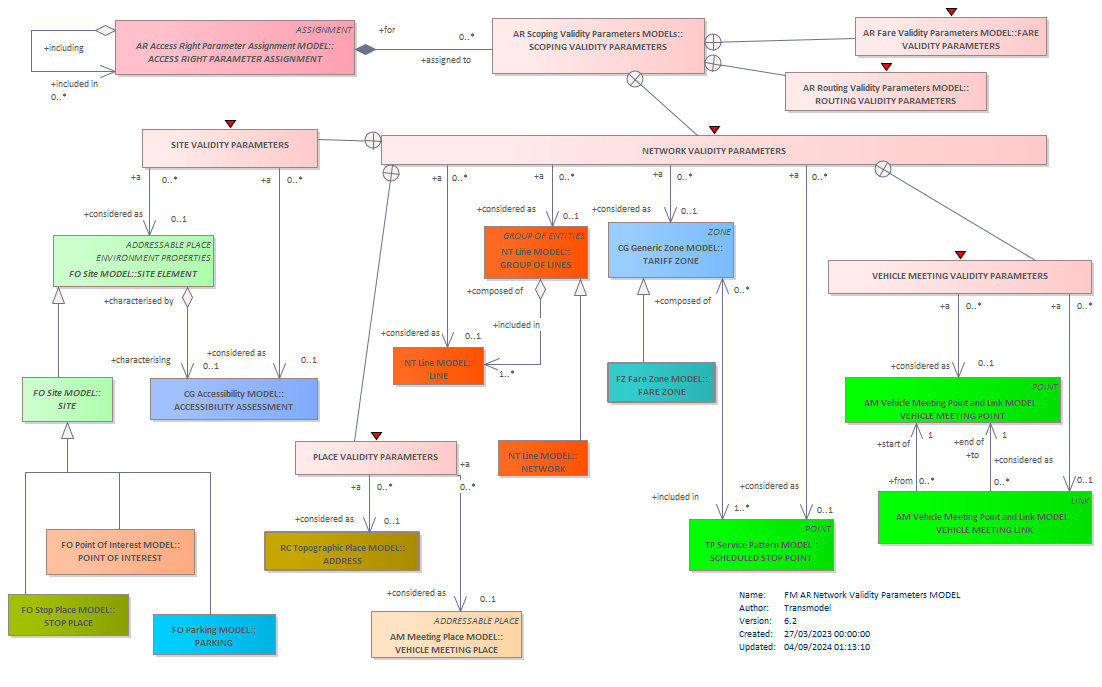

Diagram FM AR Network Validity Parameters MODEL FARE VALIDITY PARAMETERSROUTING VALIDITY PARAMETERSFARE ZONEVEHICLE MEETING VALIDITY PARAMETERSPARKINGPOINT OF INTERESTSTOP PLACESITEADDRESSACCESSIBILITY ASSESSMENTSITE VALIDITY PARAMETERSPLACE VALIDITY PARAMETERSVEHICLE MEETING PLACEVEHICLE MEETING LINKVEHICLE MEETING POINTNETWORKSITE ELEMENTSCHEDULED STOP POINTTARIFF ZONEGROUP OF LINESLINENETWORK VALIDITY PARAMETERSSCOPING VALIDITY PARAMETERSACCESS RIGHT PARAMETER ASSIGNMENT

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
ACCESSIBILITY ASSESSMENT
ADDRESS
FARE VALIDITY PARAMETERS
FARE ZONE
GROUP OF LINES
LINE
NETWORK
NETWORK VALIDITY PARAMETERS
PARKING
PLACE VALIDITY PARAMETERS
POINT OF INTEREST
ROUTING VALIDITY PARAMETERS
SCHEDULED STOP POINT
SCOPING VALIDITY PARAMETERS
SITE abstract
SITE ELEMENT abstract
SITE VALIDITY PARAMETERS
STOP PLACE
TARIFF ZONE
VEHICLE MEETING LINK
VEHICLE MEETING PLACE
VEHICLE MEETING POINT
VEHICLE MEETING VALIDITY PARAMETERS

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
