Transmodel diagram

FM AR Temporal Validity Parameters MODEL

In package AR Temporal Validity Parameters MODELView on transmodel-cen.eu

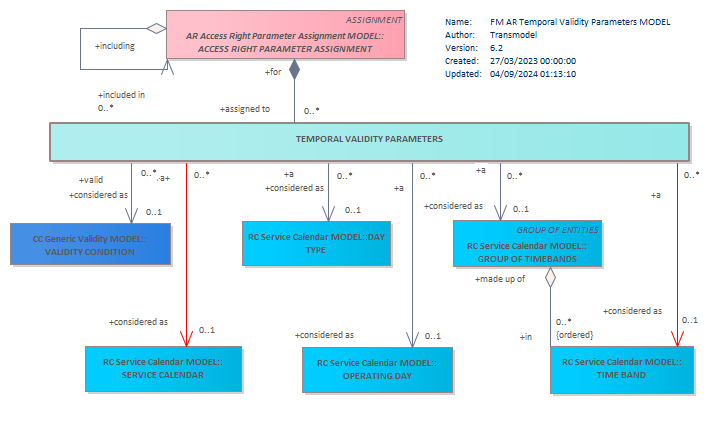

Diagram FM AR Temporal Validity Parameters MODEL SERVICE CALENDARTIME BANDVALIDITY CONDITIONGROUP OF TIMEBANDSOPERATING DAYDAY TYPETEMPORAL VALIDITY PARAMETERSACCESS RIGHT PARAMETER ASSIGNMENT

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
DAY TYPE
GROUP OF TIMEBANDS
OPERATING DAY
SERVICE CALENDAR
TEMPORAL VALIDITY PARAMETERS
TIME BAND
VALIDITY CONDITION
