Transmodel diagram

FM AR Travel Usage Parameters HIERARCHY [INFO]

In package AR Travel Usage Parameters MODELView on transmodel-cen.eu

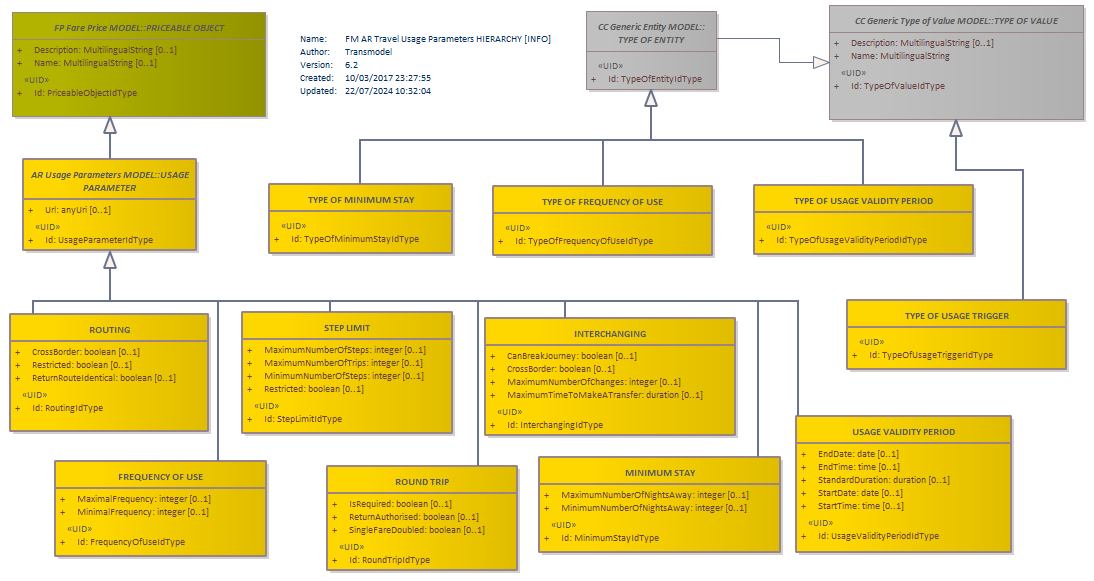

Diagram FM AR Travel Usage Parameters HIERARCHY [INFO] TYPE OF ENTITYTYPE OF USAGE TRIGGERTYPE OF USAGE VALIDITY PERIODTYPE OF FREQUENCY OF USETYPE OF MINIMUM STAYSTEP LIMITINTERCHANGINGMINIMUM STAYROUTINGROUND TRIPFREQUENCY OF USEUSAGE VALIDITY PERIODTYPE OF VALUEPRICEABLE OBJECTUSAGE PARAMETER

Classes on this diagram

FREQUENCY OF USE
INTERCHANGING
MINIMUM STAY
PRICEABLE OBJECT abstract
ROUND TRIP
ROUTING
STEP LIMIT
TYPE OF ENTITY abstract
TYPE OF FREQUENCY OF USE
TYPE OF MINIMUM STAY
TYPE OF USAGE TRIGGER
TYPE OF USAGE VALIDITY PERIOD
TYPE OF VALUE abstract
USAGE PARAMETER abstract
USAGE VALIDITY PERIOD

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
