Transmodel diagram

FM AR Travel Usage Parameters MODEL Basic [INFO]

In package AR Travel Usage Parameters MODELView on transmodel-cen.eu

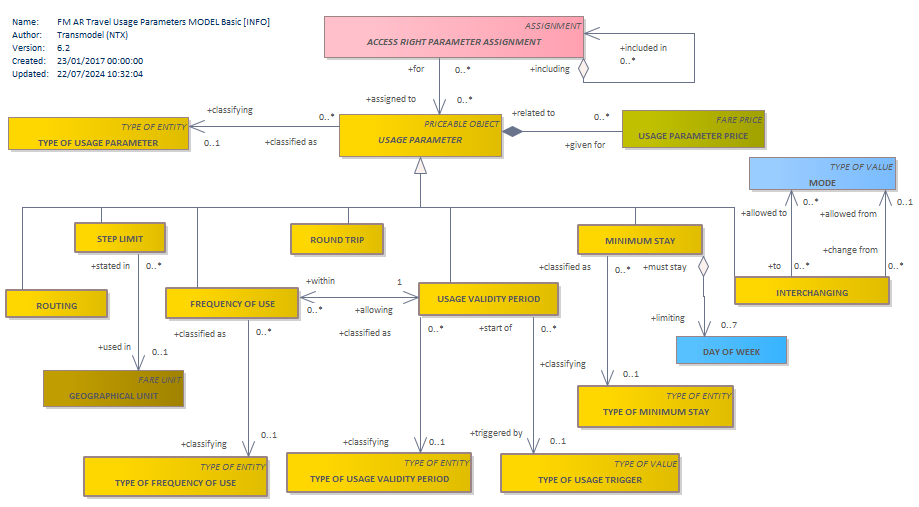

Diagram FM AR Travel Usage Parameters MODEL Basic [INFO] TYPE OF USAGE TRIGGERTYPE OF USAGE VALIDITY PERIODDAY OF WEEKTYPE OF FREQUENCY OF USETYPE OF MINIMUM STAYGEOGRAPHICAL UNITMODETYPE OF USAGE PARAMETERSTEP LIMITINTERCHANGINGMINIMUM STAYROUTINGROUND TRIPUSAGE PARAMETER PRICEFREQUENCY OF USEUSAGE VALIDITY PERIODUSAGE PARAMETERACCESS RIGHT PARAMETER ASSIGNMENT

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
DAY OF WEEK
FREQUENCY OF USE
GEOGRAPHICAL UNIT
INTERCHANGING
MINIMUM STAY
MODE
ROUND TRIP
ROUTING
STEP LIMIT
TYPE OF FREQUENCY OF USE
TYPE OF MINIMUM STAY
TYPE OF USAGE PARAMETER
TYPE OF USAGE TRIGGER
TYPE OF USAGE VALIDITY PERIOD
USAGE PARAMETER abstract
USAGE PARAMETER PRICE
USAGE VALIDITY PERIOD

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
