FM FE Account Processing Event HIERARCHY [INFO]

In package FE Account Processing Event MODELView on transmodel-cen.eu

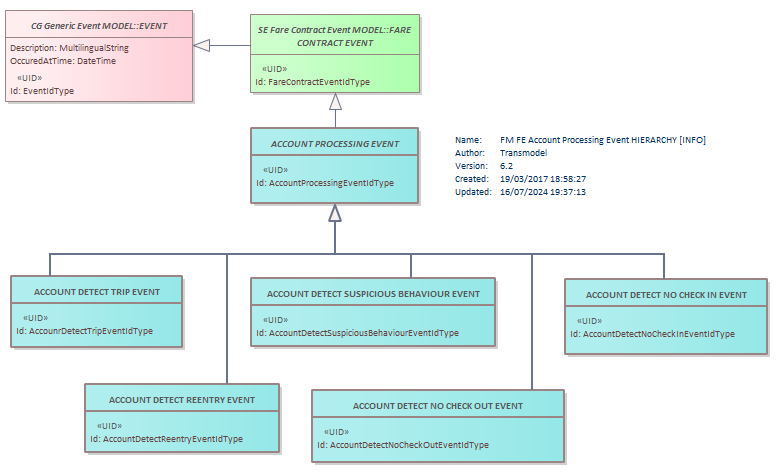

Diagram FM FE Account Processing Event HIERARCHY [INFO] ACCOUNT DETECT NO CHECK IN EVENTACCOUNT DETECT NO CHECK OUT EVENTEVENTFARE CONTRACT EVENTACCOUNT DETECT SUSPICIOUS BEHAVIOUR EVENTACCOUNT DETECT TRIP EVENTACCOUNT DETECT REENTRY EVENTACCOUNT PROCESSING EVENT

Classes on this diagram

ACCOUNT DETECT NO CHECK IN EVENT
ACCOUNT DETECT NO CHECK OUT EVENT
ACCOUNT DETECT REENTRY EVENT
ACCOUNT DETECT SUSPICIOUS BEHAVIOUR EVENT
ACCOUNT DETECT TRIP EVENT
ACCOUNT PROCESSING EVENT abstract
EVENT abstract
FARE CONTRACT EVENT abstract
