Transmodel diagram

FM FE Passenger Control Log Entry HIERARCHY [INFO]

In package FE Passenger Travel Control Log Entry MODELView on transmodel-cen.eu

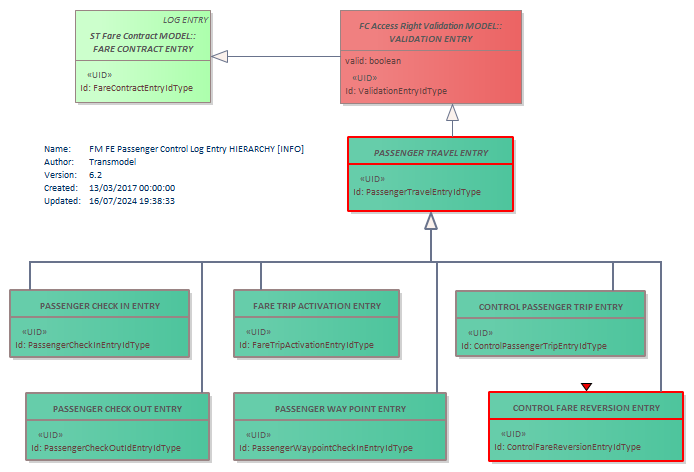

Diagram FM FE Passenger Control Log Entry HIERARCHY [INFO] CONTROL FARE REVERSION ENTRYCONTROL PASSENGER TRIP ENTRYFARE CONTRACT ENTRYPASSENGER WAY POINT ENTRYPASSENGER TRAVEL ENTRYFARE TRIP ACTIVATION ENTRYPASSENGER CHECK OUT ENTRYPASSENGER CHECK IN ENTRYVALIDATION ENTRY

Classes on this diagram

CONTROL FARE REVERSION ENTRY
CONTROL PASSENGER TRIP ENTRY
FARE CONTRACT ENTRY abstract
FARE TRIP ACTIVATION ENTRY
PASSENGER CHECK IN ENTRY
PASSENGER CHECK OUT ENTRY
PASSENGER TRAVEL ENTRY abstract
PASSENGER WAY POINT ENTRY
VALIDATION ENTRY abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
