Transmodel diagram

FM FE Passenger Travel Control Event HIERARCHY [INFO]

In package FE Passenger Travel Control Event MODELView on transmodel-cen.eu

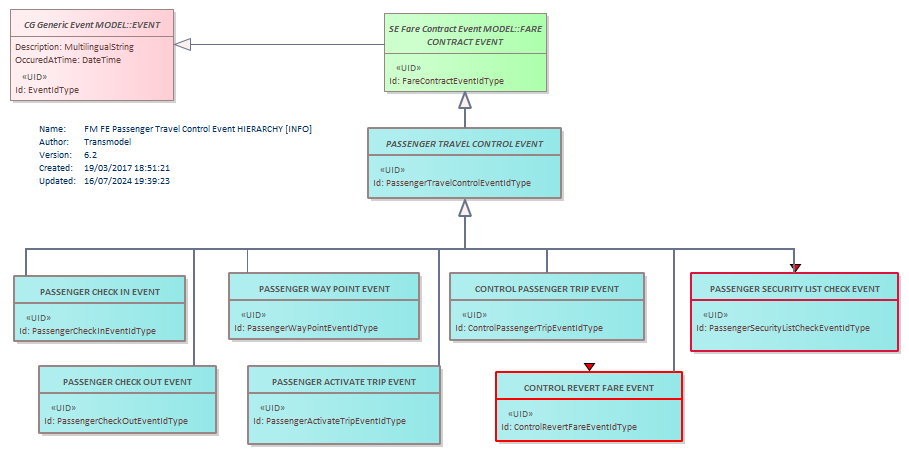

Diagram FM FE Passenger Travel Control Event HIERARCHY [INFO] PASSENGER SECURITY LIST CHECK EVENTCONTROL REVERT FARE EVENTEVENTFARE CONTRACT EVENTCONTROL PASSENGER TRIP EVENTPASSENGER WAY POINT EVENTPASSENGER ACTIVATE TRIP EVENTPASSENGER CHECK OUT EVENTPASSENGER CHECK IN EVENTPASSENGER TRAVEL CONTROL EVENT

Classes on this diagram

CONTROL PASSENGER TRIP EVENT
CONTROL REVERT FARE EVENT
EVENT abstract
FARE CONTRACT EVENT abstract
PASSENGER ACTIVATE TRIP EVENT
PASSENGER CHECK IN EVENT
PASSENGER CHECK OUT EVENT
PASSENGER SECURITY LIST CHECK EVENT
PASSENGER TRAVEL CONTROL EVENT abstract
PASSENGER WAY POINT EVENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
