Transmodel diagram

FM FE Passenger Travel Match Log Entry HIERARCHY [INFO]

In package FE Travel Match Log Entry MODELView on transmodel-cen.eu

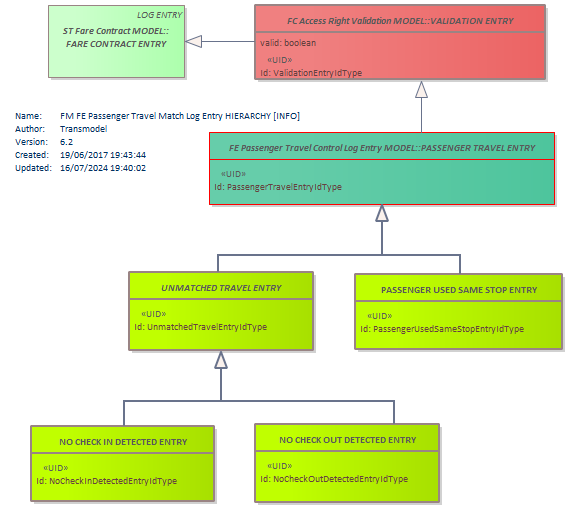

Diagram FM FE Passenger Travel Match Log Entry HIERARCHY [INFO] PASSENGER USED SAME STOP ENTRYVALIDATION ENTRYUNMATCHED TRAVEL ENTRYPASSENGER TRAVEL ENTRYNO CHECK IN DETECTED ENTRYNO CHECK OUT DETECTED ENTRYFARE CONTRACT ENTRY

Classes on this diagram

FARE CONTRACT ENTRY abstract
NO CHECK IN DETECTED ENTRY
NO CHECK OUT DETECTED ENTRY
PASSENGER TRAVEL ENTRY abstract
PASSENGER USED SAME STOP ENTRY
UNMATCHED TRAVEL ENTRY abstract
VALIDATION ENTRY abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
