Transmodel diagram

FM FR Fare Management Role MODEL

In package FR Fare Management Role MODELView on transmodel-cen.eu

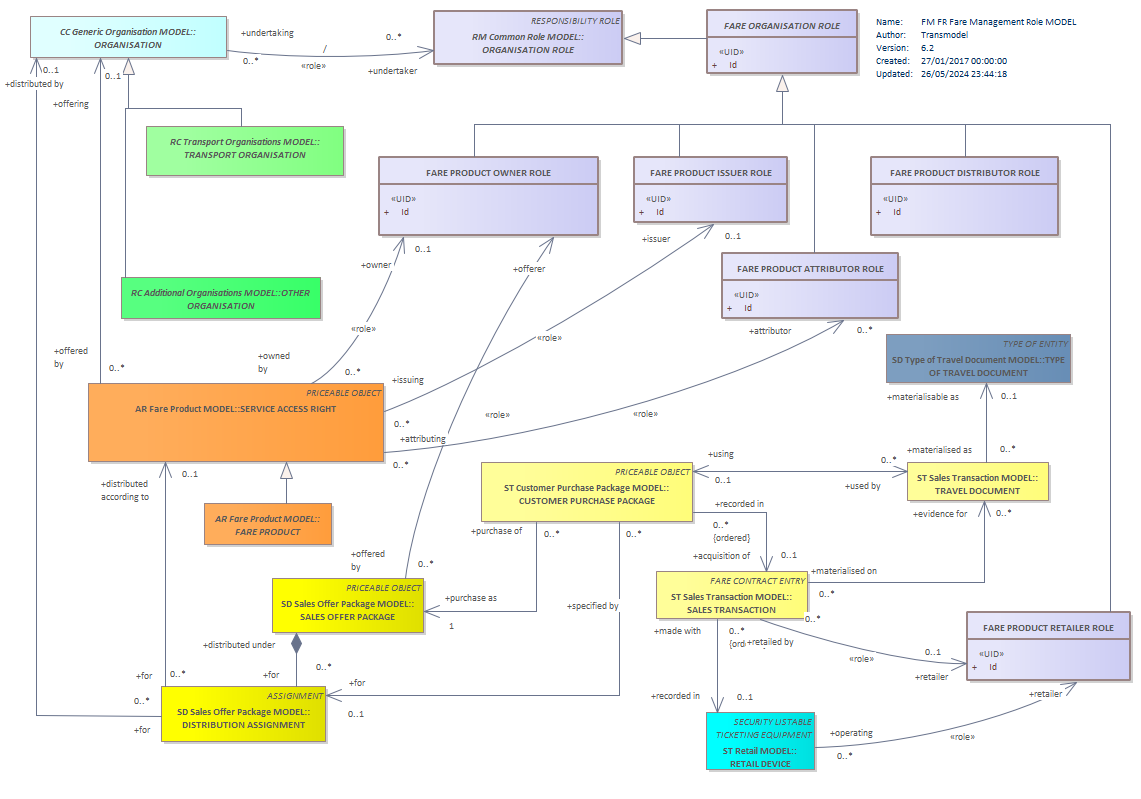

Diagram FM FR Fare Management Role MODEL TRANSPORT ORGANISATIONCUSTOMER PURCHASE PACKAGEFARE PRODUCT ISSUER ROLEFARE PRODUCT ATTRIBUTOR ROLEFARE PRODUCT DISTRIBUTOR ROLEORGANISATION ROLESALES TRANSACTIONRETAIL DEVICEFARE PRODUCT RETAILER ROLEDISTRIBUTION ASSIGNMENTSALES OFFER PACKAGESERVICE ACCESS RIGHTFARE PRODUCTTRAVEL DOCUMENTTYPE OF TRAVEL DOCUMENTFARE PRODUCT OWNER ROLEFARE ORGANISATION ROLEORGANISATIONOTHER ORGANISATION

Classes on this diagram

CUSTOMER PURCHASE PACKAGE
DISTRIBUTION ASSIGNMENT
FARE ORGANISATION ROLE abstract
FARE PRODUCT abstract
FARE PRODUCT ATTRIBUTOR ROLE
FARE PRODUCT DISTRIBUTOR ROLE
FARE PRODUCT ISSUER ROLE
FARE PRODUCT OWNER ROLE
FARE PRODUCT RETAILER ROLE
ORGANISATION abstract
ORGANISATION ROLE abstract
OTHER ORGANISATION abstract
RETAIL DEVICE
SALES OFFER PACKAGE
SALES TRANSACTION
SERVICE ACCESS RIGHT
TRANSPORT ORGANISATION abstract
TRAVEL DOCUMENT
TYPE OF TRAVEL DOCUMENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
