Transmodel diagram

FM FS Fare Zone MODEL Basic [INFO]

In package FZ Fare Zone MODELView on transmodel-cen.eu

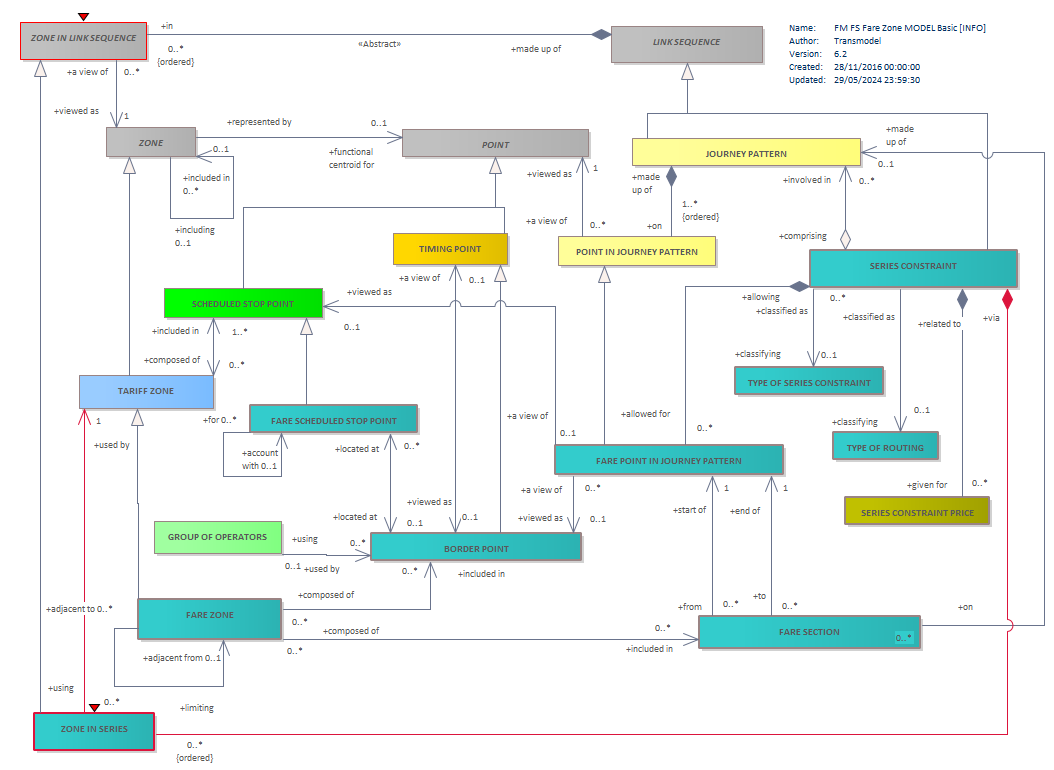

Diagram FM FS Fare Zone MODEL Basic [INFO] LINK SEQUENCEZONE IN LINK SEQUENCEZONE IN SERIESTYPE OF ROUTINGTYPE OF SERIES CONSTRAINTGROUP OF OPERATORSTIMING POINTSCHEDULED STOP POINTSERIES CONSTRAINTPOINT IN JOURNEY PATTERNSERIES CONSTRAINT PRICEJOURNEY PATTERNTARIFF ZONEPOINTZONEFARE ZONEFARE SCHEDULED STOP POINTBORDER POINTFARE SECTIONFARE POINT IN JOURNEY PATTERN

Classes on this diagram

BORDER POINT
FARE POINT IN JOURNEY PATTERN
FARE SCHEDULED STOP POINT
FARE SECTION
FARE ZONE
GROUP OF OPERATORS
JOURNEY PATTERN
LINK SEQUENCE abstract
POINT abstract
POINT IN JOURNEY PATTERN
SCHEDULED STOP POINT
SERIES CONSTRAINT
SERIES CONSTRAINT PRICE
TARIFF ZONE
TIMING POINT
TYPE OF ROUTING
TYPE OF SERIES CONSTRAINT
ZONE abstract
ZONE IN LINK SEQUENCE abstract
ZONE IN SERIES

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
