Transmodel diagram

FM SD Type of Travel Document MODEL Basic [INFO]

In package SD Type of Travel Document MODELView on transmodel-cen.eu

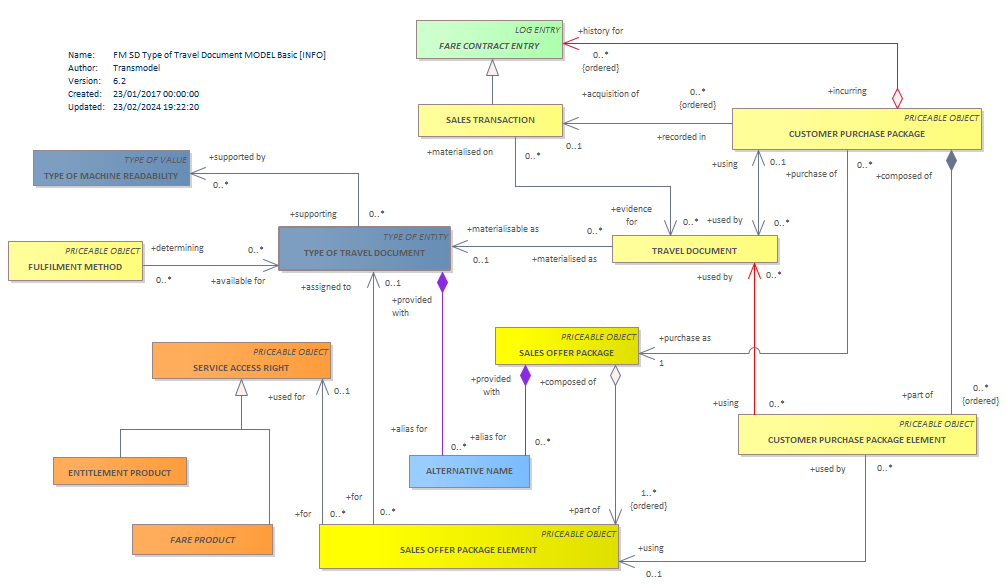

Diagram FM SD Type of Travel Document MODEL Basic [INFO] CUSTOMER PURCHASE PACKAGE ELEMENTSALES OFFER PACKAGECUSTOMER PURCHASE PACKAGESALES TRANSACTIONTYPE OF MACHINE READABILITYFARE CONTRACT ENTRYENTITLEMENT PRODUCTSERVICE ACCESS RIGHTFARE PRODUCTALTERNATIVE NAMEFULFILMENT METHODTRAVEL DOCUMENTTYPE OF TRAVEL DOCUMENTSALES OFFER PACKAGE ELEMENT

Classes on this diagram

ALTERNATIVE NAME
CUSTOMER PURCHASE PACKAGE
CUSTOMER PURCHASE PACKAGE ELEMENT
ENTITLEMENT PRODUCT
FARE CONTRACT ENTRY abstract
FARE PRODUCT abstract
FULFILMENT METHOD
SALES OFFER PACKAGE
SALES OFFER PACKAGE ELEMENT
SALES TRANSACTION
SERVICE ACCESS RIGHT
TRAVEL DOCUMENT
TYPE OF MACHINE READABILITY
TYPE OF TRAVEL DOCUMENT
