Transmodel diagram

FM SE Account Sales Event MODEL Basic [INFO]

In package SE Account Sales Event MODELView on transmodel-cen.eu

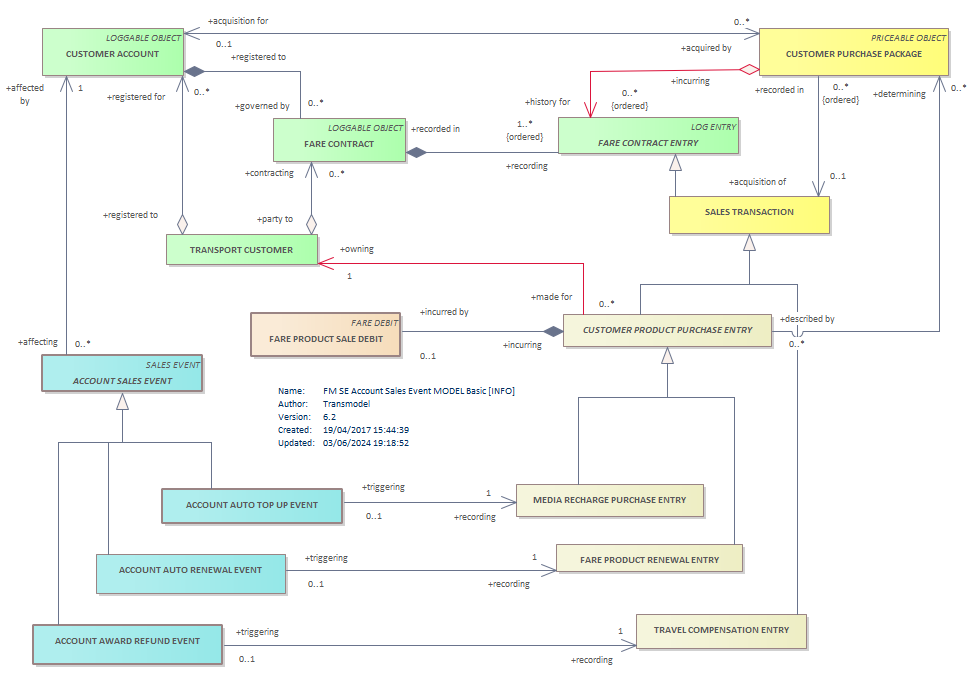

Diagram FM SE Account Sales Event MODEL Basic [INFO] CUSTOMER PURCHASE PACKAGETRAVEL COMPENSATION ENTRYSALES TRANSACTIONCUSTOMER ACCOUNTFARE CONTRACTFARE CONTRACT ENTRYACCOUNT SALES EVENTACCOUNT AWARD REFUND EVENTTRANSPORT CUSTOMERFARE PRODUCT RENEWAL ENTRYFARE PRODUCT SALE DEBITCUSTOMER PRODUCT PURCHASE ENTRYACCOUNT AUTO RENEWAL EVENTACCOUNT AUTO TOP UP EVENTMEDIA RECHARGE PURCHASE ENTRY

Classes on this diagram

ACCOUNT AUTO RENEWAL EVENT
ACCOUNT AUTO TOP UP EVENT
ACCOUNT AWARD REFUND EVENT
ACCOUNT SALES EVENT abstract
CUSTOMER ACCOUNT
CUSTOMER PRODUCT PURCHASE ENTRY abstract
CUSTOMER PURCHASE PACKAGE
FARE CONTRACT
FARE CONTRACT ENTRY abstract
FARE PRODUCT RENEWAL ENTRY
FARE PRODUCT SALE DEBIT
MEDIA RECHARGE PURCHASE ENTRY
SALES TRANSACTION
TRANSPORT CUSTOMER
TRAVEL COMPENSATION ENTRY
