Transmodel diagram

FM SE Customer Purchase Event MODEL Basic [INFO]

In package SE Customer Purchase Event MODELView on transmodel-cen.eu

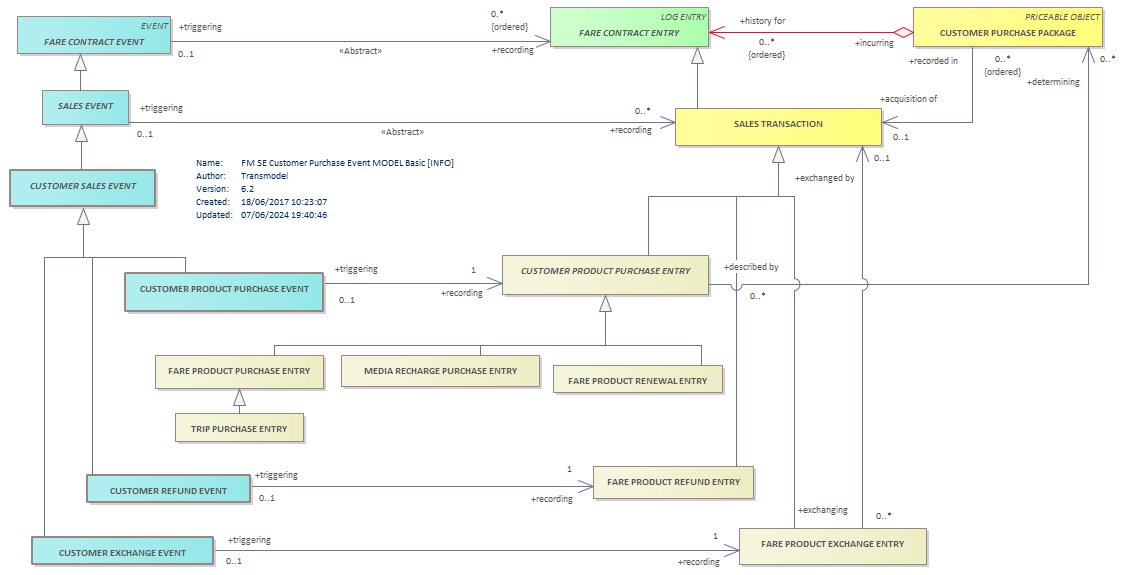

Diagram FM SE Customer Purchase Event MODEL Basic [INFO] CUSTOMER PURCHASE PACKAGESALES EVENTFARE CONTRACT ENTRYFARE CONTRACT EVENTSALES TRANSACTIONFARE PRODUCT RENEWAL ENTRYTRIP PURCHASE ENTRYFARE PRODUCT PURCHASE ENTRYMEDIA RECHARGE PURCHASE ENTRYCUSTOMER SALES EVENTCUSTOMER REFUND EVENTFARE PRODUCT REFUND ENTRYCUSTOMER EXCHANGE EVENTCUSTOMER PRODUCT PURCHASE EVENTCUSTOMER PRODUCT PURCHASE ENTRYFARE PRODUCT EXCHANGE ENTRY

Classes on this diagram

CUSTOMER EXCHANGE EVENT
CUSTOMER PRODUCT PURCHASE ENTRY abstract
CUSTOMER PRODUCT PURCHASE EVENT
CUSTOMER PURCHASE PACKAGE
CUSTOMER REFUND EVENT
CUSTOMER SALES EVENT abstract
FARE CONTRACT ENTRY abstract
FARE CONTRACT EVENT abstract
FARE PRODUCT EXCHANGE ENTRY
FARE PRODUCT PURCHASE ENTRY
FARE PRODUCT REFUND ENTRY
FARE PRODUCT RENEWAL ENTRY
MEDIA RECHARGE PURCHASE ENTRY
SALES EVENT abstract
SALES TRANSACTION
TRIP PURCHASE ENTRY

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
