FM SE Customer Purchase Log Entry HIERARCHY [INFO]

In package SE Customer Purchase Log Entry MODELView on transmodel-cen.eu

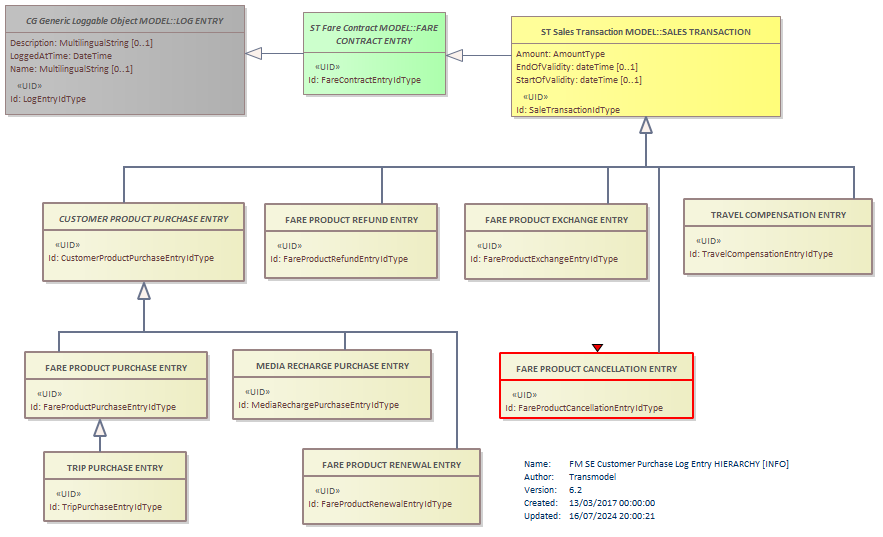

Diagram FM SE Customer Purchase Log Entry HIERARCHY [INFO] FARE PRODUCT CANCELLATION ENTRYFARE CONTRACT ENTRYLOG ENTRYFARE PRODUCT RENEWAL ENTRYSALES TRANSACTIONCUSTOMER PRODUCT PURCHASE ENTRYFARE PRODUCT REFUND ENTRYFARE PRODUCT EXCHANGE ENTRYTRAVEL COMPENSATION ENTRYTRIP PURCHASE ENTRYFARE PRODUCT PURCHASE ENTRYMEDIA RECHARGE PURCHASE ENTRY

Classes on this diagram

CUSTOMER PRODUCT PURCHASE ENTRY abstract
FARE CONTRACT ENTRY abstract
FARE PRODUCT CANCELLATION ENTRY
FARE PRODUCT EXCHANGE ENTRY
FARE PRODUCT PURCHASE ENTRY
FARE PRODUCT REFUND ENTRY
FARE PRODUCT RENEWAL ENTRY
LOG ENTRY abstract
MEDIA RECHARGE PURCHASE ENTRY
SALES TRANSACTION
TRAVEL COMPENSATION ENTRY
TRIP PURCHASE ENTRY

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
