Transmodel diagram

FM ST Retail HIERARCHY [INFO]

In package ST Retail MODELView on transmodel-cen.eu

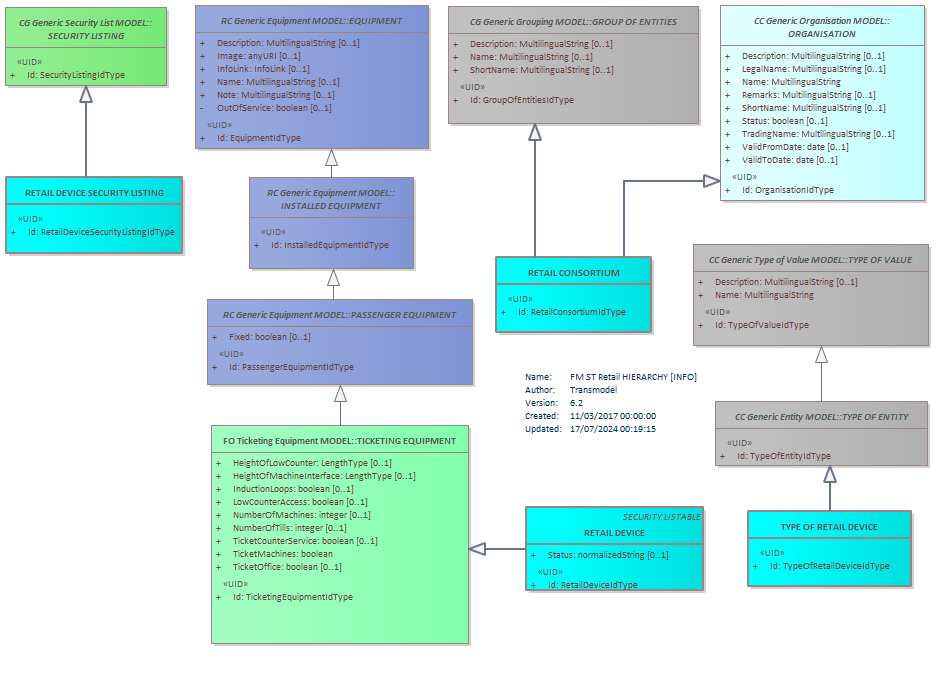

Diagram FM ST Retail HIERARCHY [INFO] TYPE OF ENTITYGROUP OF ENTITIESPASSENGER EQUIPMENTTICKETING EQUIPMENTORGANISATIONEQUIPMENTINSTALLED EQUIPMENTRETAIL DEVICE SECURITY LISTINGRETAIL CONSORTIUMRETAIL DEVICETYPE OF RETAIL DEVICESECURITY LISTINGTYPE OF VALUE

Classes on this diagram

EQUIPMENT abstract
GROUP OF ENTITIES abstract
INSTALLED EQUIPMENT abstract
ORGANISATION abstract
PASSENGER EQUIPMENT abstract
RETAIL CONSORTIUM
RETAIL DEVICE
RETAIL DEVICE SECURITY LISTING
SECURITY LISTING abstract
TICKETING EQUIPMENT
TYPE OF ENTITY abstract
TYPE OF RETAIL DEVICE
TYPE OF VALUE abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
