Transmodel diagram

FM ST Sales Transaction MODEL Basic [INFO]

In package ST Sales Transaction MODELView on transmodel-cen.eu

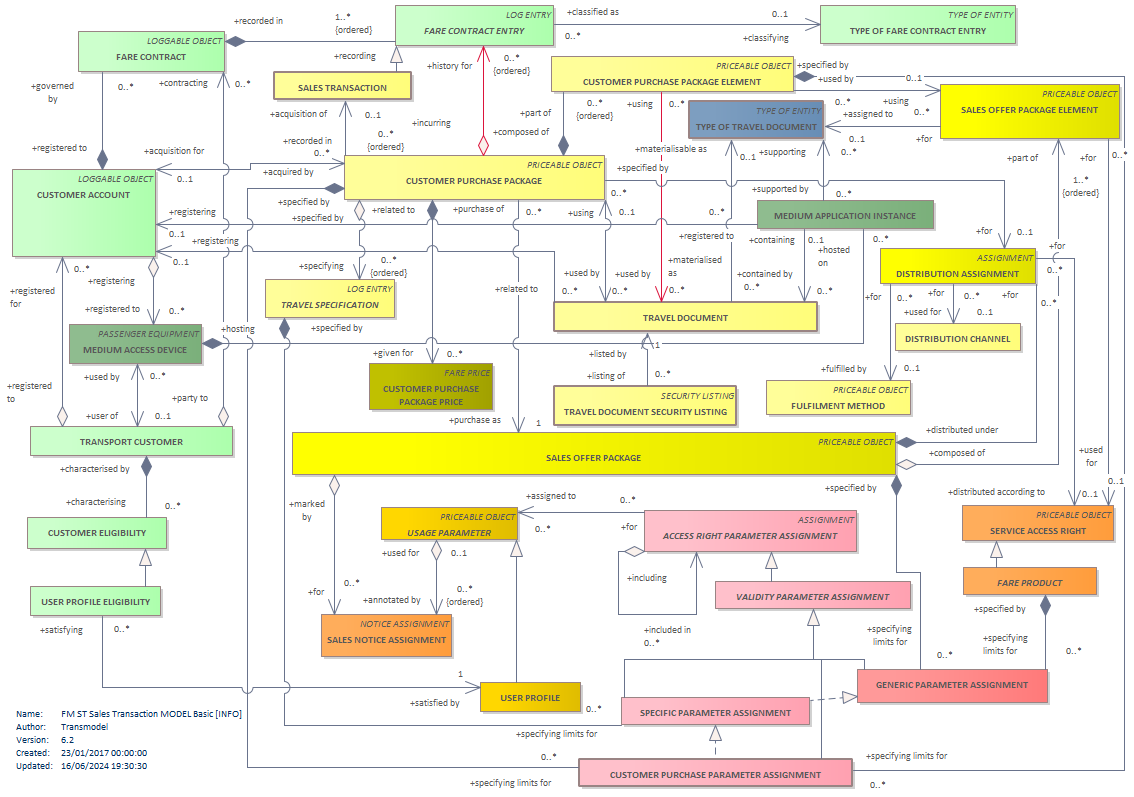

Diagram FM ST Sales Transaction MODEL Basic [INFO] TRAVEL DOCUMENT SECURITY LISTINGCUSTOMER PURCHASE PACKAGE PRICECUSTOMER PURCHASE PACKAGE ELEMENTMEDIUM APPLICATION INSTANCEMEDIUM ACCESS DEVICECUSTOMER PURCHASE PARAMETER ASSIGNMENTUSER PROFILE ELIGIBILITYCUSTOMER ELIGIBILITYTYPE OF TRAVEL DOCUMENTDISTRIBUTION CHANNELFULFILMENT METHODTRAVEL DOCUMENTCUSTOMER PURCHASE PACKAGECUSTOMER ACCOUNTDISTRIBUTION ASSIGNMENTACCESS RIGHT PARAMETER ASSIGNMENTUSAGE PARAMETERSALES NOTICE ASSIGNMENTSALES OFFER PACKAGE ELEMENTSERVICE ACCESS RIGHTFARE PRODUCTSALES OFFER PACKAGEGENERIC PARAMETER ASSIGNMENTVALIDITY PARAMETER ASSIGNMENTUSER PROFILESPECIFIC PARAMETER ASSIGNMENTTYPE OF FARE CONTRACT ENTRYTRAVEL SPECIFICATIONSALES TRANSACTIONFARE CONTRACT ENTRYFARE CONTRACTTRANSPORT CUSTOMER

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
CUSTOMER ACCOUNT
CUSTOMER ELIGIBILITY
CUSTOMER PURCHASE PACKAGE
CUSTOMER PURCHASE PACKAGE ELEMENT
CUSTOMER PURCHASE PACKAGE PRICE
CUSTOMER PURCHASE PARAMETER ASSIGNMENT
DISTRIBUTION ASSIGNMENT
DISTRIBUTION CHANNEL
FARE CONTRACT
FARE CONTRACT ENTRY abstract
FARE PRODUCT abstract
FULFILMENT METHOD
GENERIC PARAMETER ASSIGNMENT
MEDIUM ACCESS DEVICE
MEDIUM APPLICATION INSTANCE
SALES NOTICE ASSIGNMENT
SALES OFFER PACKAGE
SALES OFFER PACKAGE ELEMENT
SALES TRANSACTION
SERVICE ACCESS RIGHT
SPECIFIC PARAMETER ASSIGNMENT
TRANSPORT CUSTOMER
TRAVEL DOCUMENT
TRAVEL DOCUMENT SECURITY LISTING
TRAVEL SPECIFICATION abstract
TYPE OF FARE CONTRACT ENTRY
TYPE OF TRAVEL DOCUMENT
USAGE PARAMETER abstract
USER PROFILE
USER PROFILE ELIGIBILITY
VALIDITY PARAMETER ASSIGNMENT abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
