Transmodel diagram

FM ST Sales Transaction MODEL

In package ST Sales Transaction MODELView on transmodel-cen.eu

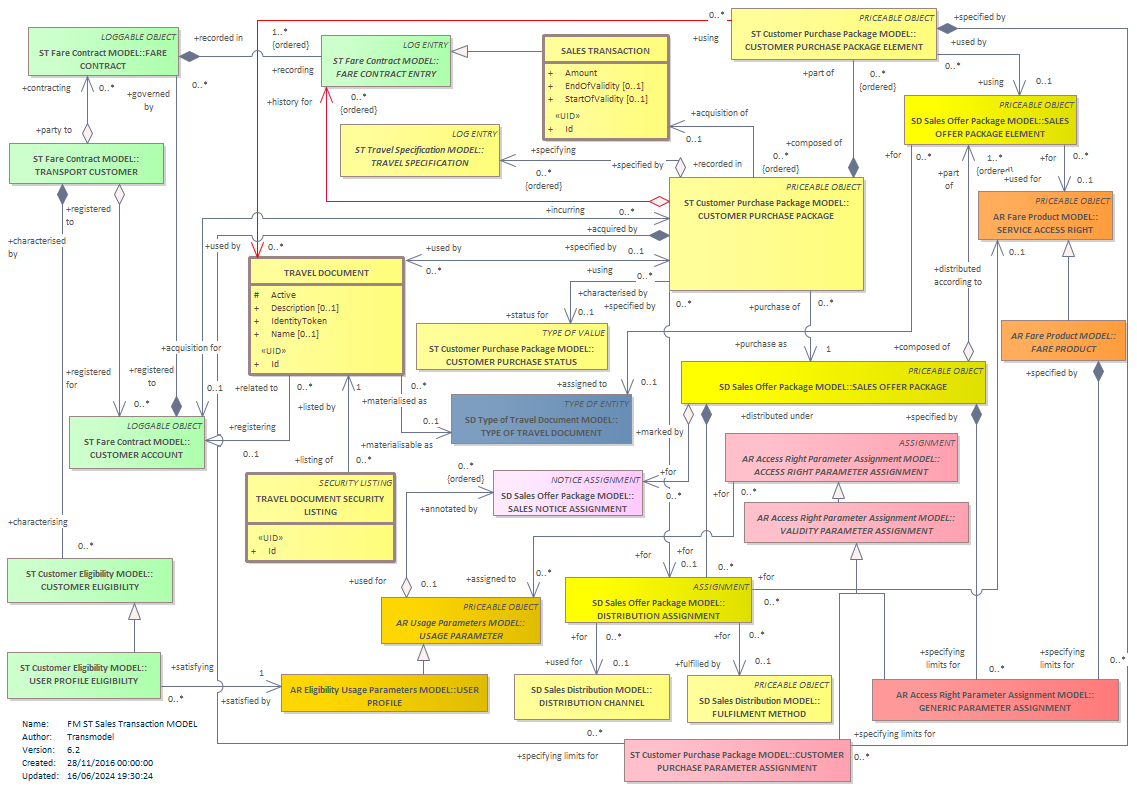

Diagram FM ST Sales Transaction MODEL TRAVEL DOCUMENT SECURITY LISTINGCUSTOMER PURCHASE STATUSCUSTOMER PURCHASE PACKAGE ELEMENTGENERIC PARAMETER ASSIGNMENTCUSTOMER PURCHASE PARAMETER ASSIGNMENTCUSTOMER ELIGIBILITYCUSTOMER ACCOUNTTYPE OF TRAVEL DOCUMENTUSER PROFILE ELIGIBILITYDISTRIBUTION CHANNELFULFILMENT METHODTRAVEL DOCUMENTCUSTOMER PURCHASE PACKAGEDISTRIBUTION ASSIGNMENTACCESS RIGHT PARAMETER ASSIGNMENTSALES OFFER PACKAGE ELEMENTSERVICE ACCESS RIGHTFARE PRODUCTSALES OFFER PACKAGEVALIDITY PARAMETER ASSIGNMENTSALES TRANSACTIONUSAGE PARAMETERSALES NOTICE ASSIGNMENTUSER PROFILETRAVEL SPECIFICATIONFARE CONTRACT ENTRYFARE CONTRACTTRANSPORT CUSTOMER

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
CUSTOMER ACCOUNT
CUSTOMER ELIGIBILITY
CUSTOMER PURCHASE PACKAGE
CUSTOMER PURCHASE PACKAGE ELEMENT
CUSTOMER PURCHASE PARAMETER ASSIGNMENT
CUSTOMER PURCHASE STATUS
DISTRIBUTION ASSIGNMENT
DISTRIBUTION CHANNEL
FARE CONTRACT
FARE CONTRACT ENTRY abstract
FARE PRODUCT abstract
FULFILMENT METHOD
GENERIC PARAMETER ASSIGNMENT
SALES NOTICE ASSIGNMENT
SALES OFFER PACKAGE
SALES OFFER PACKAGE ELEMENT
SALES TRANSACTION
SERVICE ACCESS RIGHT
TRANSPORT CUSTOMER
TRAVEL DOCUMENT
TRAVEL DOCUMENT SECURITY LISTING
TRAVEL SPECIFICATION abstract
TYPE OF TRAVEL DOCUMENT
USAGE PARAMETER abstract
USER PROFILE
USER PROFILE ELIGIBILITY
VALIDITY PARAMETER ASSIGNMENT abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
