Transmodel diagram

NT FO Flexible Stop Place HIERARCHY [INFO]

In package FO Flexible Stop Place MODELView on transmodel-cen.eu

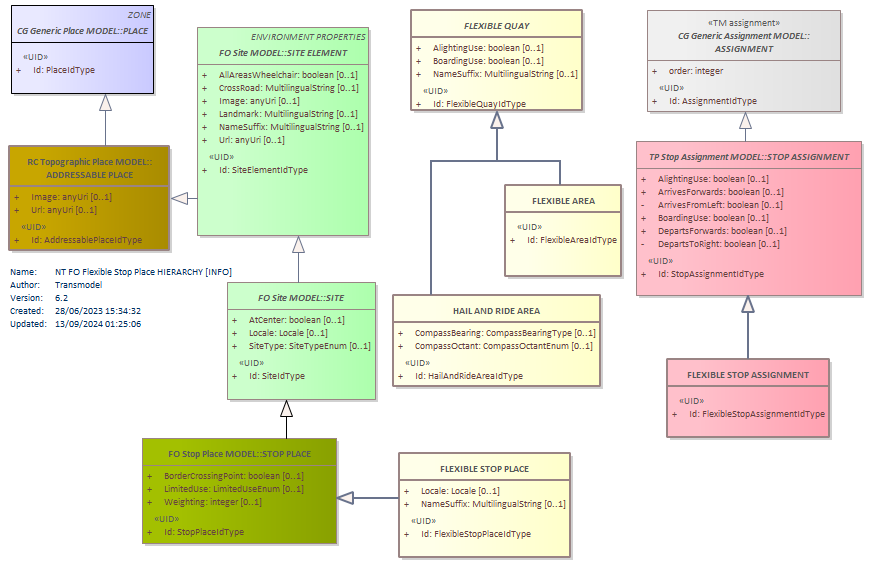

Diagram NT FO Flexible Stop Place HIERARCHY [INFO] SITEPLACEADDRESSABLE PLACESITE ELEMENTASSIGNMENTFLEXIBLE STOP ASSIGNMENTSTOP ASSIGNMENTFLEXIBLE AREAHAIL AND RIDE AREASTOP PLACEFLEXIBLE QUAYFLEXIBLE STOP PLACE

Classes on this diagram

ADDRESSABLE PLACE
ASSIGNMENT abstract
FLEXIBLE AREA
FLEXIBLE QUAY abstract
FLEXIBLE STOP ASSIGNMENT
FLEXIBLE STOP PLACE
HAIL AND RIDE AREA
PLACE abstract
SITE abstract
SITE ELEMENT abstract
STOP ASSIGNMENT abstract
STOP PLACE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
