Transmodel diagram

NT FO Parking Equipment MODEL

In package FO Parking Equipment MODELView on transmodel-cen.eu

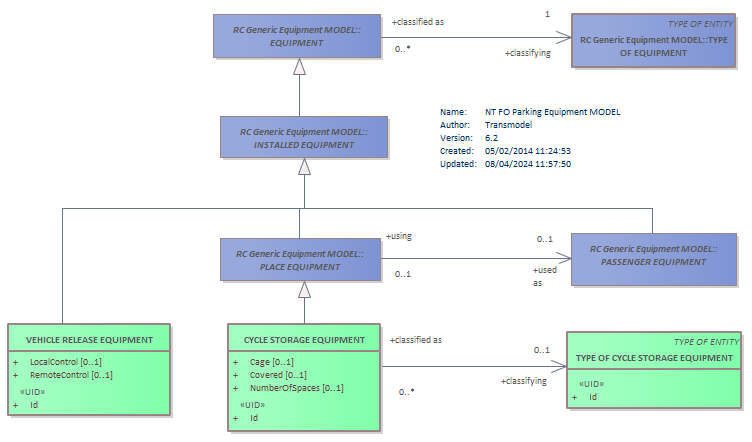

Diagram NT FO Parking Equipment MODEL VEHICLE RELEASE EQUIPMENTPASSENGER EQUIPMENTTYPE OF EQUIPMENTINSTALLED EQUIPMENTEQUIPMENTPLACE EQUIPMENTTYPE OF CYCLE STORAGE EQUIPMENTCYCLE STORAGE EQUIPMENT

Classes on this diagram

CYCLE STORAGE EQUIPMENT
EQUIPMENT abstract
INSTALLED EQUIPMENT abstract
PASSENGER EQUIPMENT abstract
PLACE EQUIPMENT abstract
TYPE OF CYCLE STORAGE EQUIPMENT
TYPE OF EQUIPMENT
VEHICLE RELEASE EQUIPMENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
