Transmodel diagram

NT FO Stair Equipment HIERARCHY [INFO]

In package FO Stair Equipment MODELView on transmodel-cen.eu

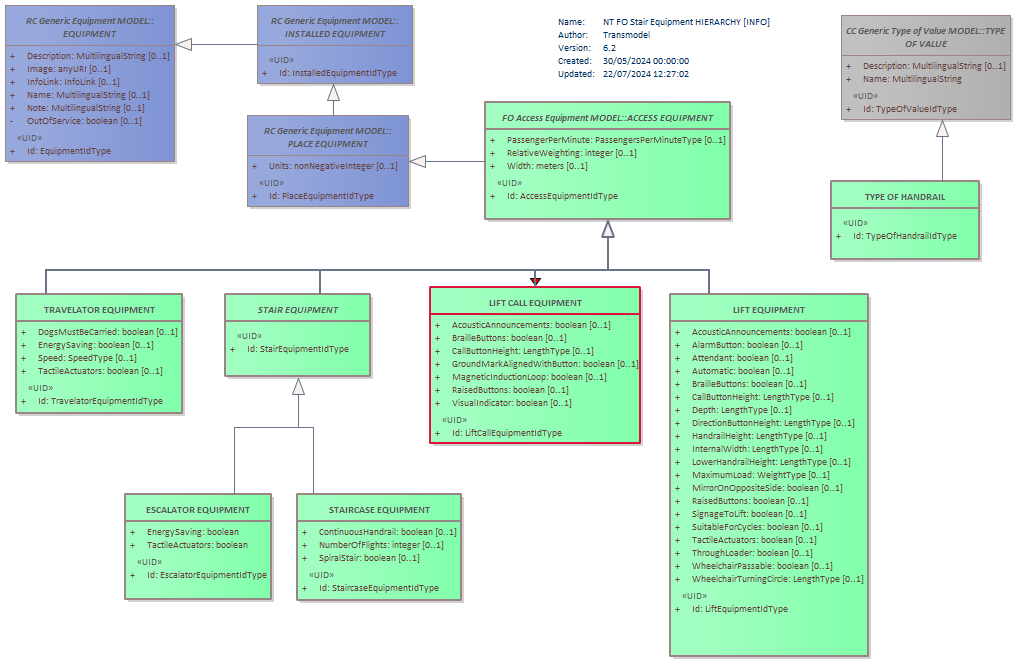

Diagram NT FO Stair Equipment HIERARCHY [INFO] LIFT CALL EQUIPMENTTRAVELATOR EQUIPMENTTYPE OF HANDRAILSTAIRCASE EQUIPMENTESCALATOR EQUIPMENTLIFT EQUIPMENTSTAIR EQUIPMENTINSTALLED EQUIPMENTPLACE EQUIPMENTACCESS EQUIPMENTTYPE OF VALUEEQUIPMENT

Classes on this diagram

ACCESS EQUIPMENT abstract
EQUIPMENT abstract
ESCALATOR EQUIPMENT
INSTALLED EQUIPMENT abstract
LIFT CALL EQUIPMENT
LIFT EQUIPMENT
PLACE EQUIPMENT abstract
STAIR EQUIPMENT abstract
STAIRCASE EQUIPMENT
TRAVELATOR EQUIPMENT
TYPE OF HANDRAIL
TYPE OF VALUE abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
