Transmodel diagram

NT FO Stair Equipment MODEL

In package FO Stair Equipment MODELView on transmodel-cen.eu

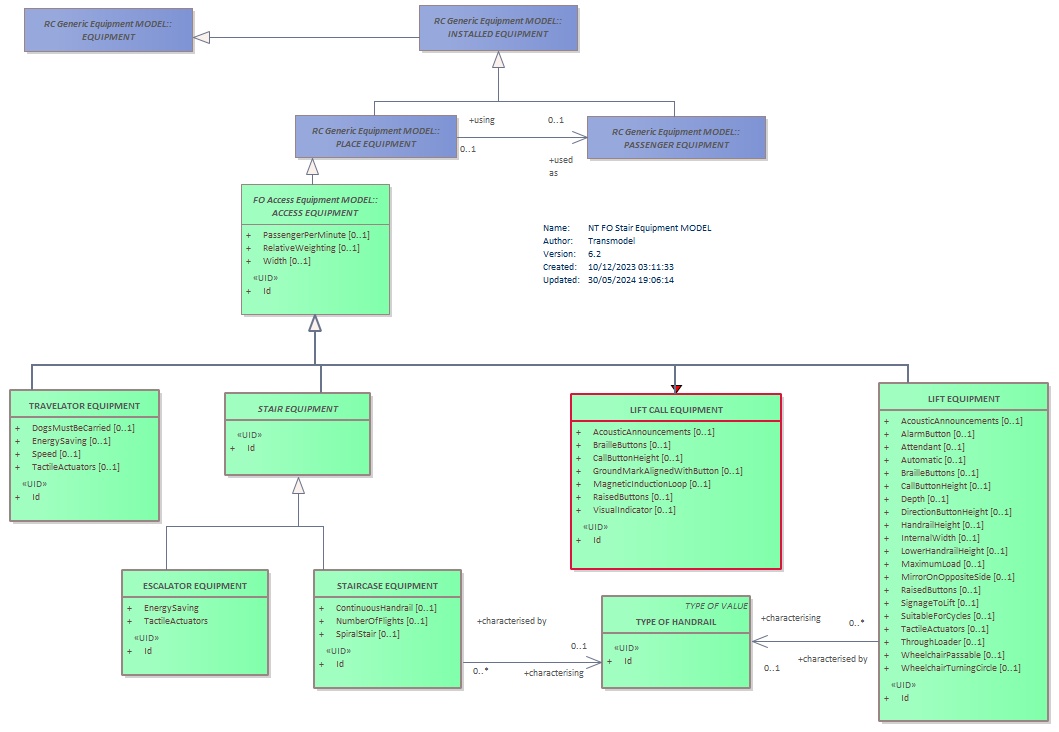

Diagram NT FO Stair Equipment MODEL LIFT CALL EQUIPMENTTRAVELATOR EQUIPMENTPASSENGER EQUIPMENTINSTALLED EQUIPMENTEQUIPMENTPLACE EQUIPMENTTYPE OF HANDRAILSTAIRCASE EQUIPMENTESCALATOR EQUIPMENTLIFT EQUIPMENTSTAIR EQUIPMENTACCESS EQUIPMENT

Classes on this diagram

ACCESS EQUIPMENT abstract
EQUIPMENT abstract
ESCALATOR EQUIPMENT
INSTALLED EQUIPMENT abstract
LIFT CALL EQUIPMENT
LIFT EQUIPMENT
PASSENGER EQUIPMENT abstract
PLACE EQUIPMENT abstract
STAIR EQUIPMENT abstract
STAIRCASE EQUIPMENT
TRAVELATOR EQUIPMENT
TYPE OF HANDRAIL

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
